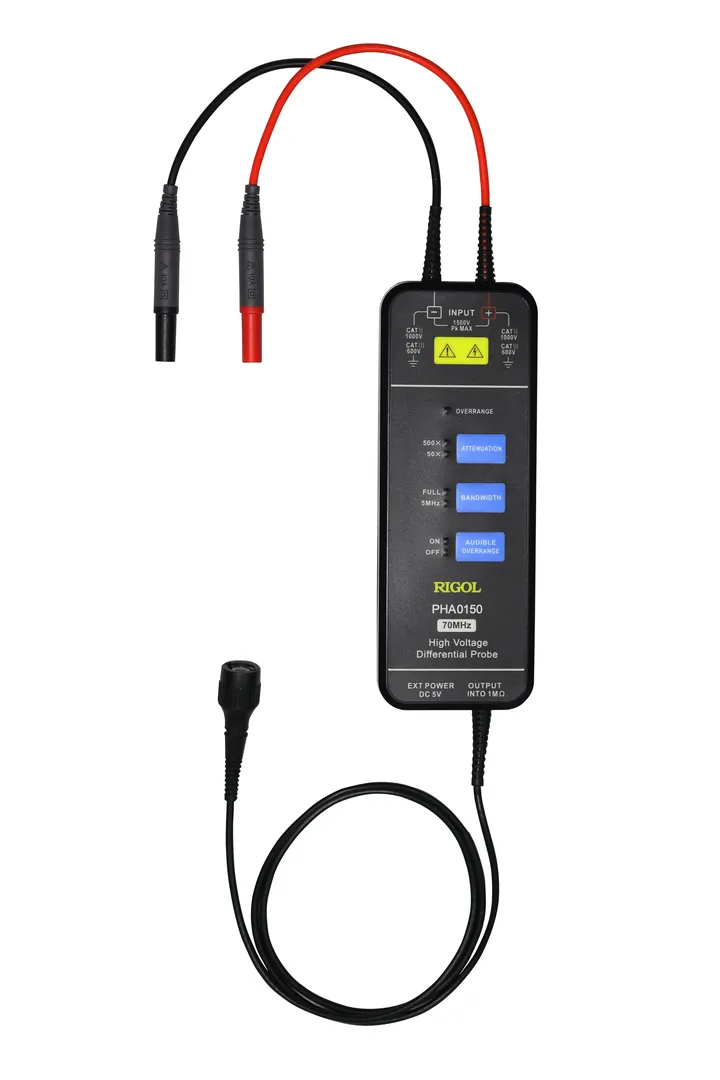

RIGOL PHA0150
70 MHz Differential Probe
70 MHz 1500 V Differential Voltage Probe
List price $799
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL PHA0150 at a glance
- Differential probe with 70 MHz of bandwidth.
- Rated to 1500 V (see RIGOL's datasheet for derating).
- Differential probe: measures between two points, neither of which needs to be ground.
- Safe way to look at floating nodes in mains-powered and switch-mode circuits.
CH2RIGOL PHA0150 specifications
| Figure | PHA0150 | Source |
|---|---|---|
| Part number | PHA0150 | RIGOL |
| Brand | RIGOL | RIGOL |
| Bandwidth | 70 MHz | RIGOL product description |
| Probe type | Differential | RIGOL product description |
| Max. input voltage | 1500 V | RIGOL product description |
| Works with | DS1000Z Series, DS2000A Series, MSO2000A Series, MSO5000 Series, DS7000 / MSO7000 Series, DS8000-R Series, MSO8000 Series, DHO5000 Series, MHO5000 Series, DHO1000 Series, DHO4000 Series, DHO800 Series, DHO900 Series, DS70000 Series, DS80000 Series, DS9000 Series, MSO9000 Series, MHO2000 Series, MHO900 Series | RIGOL compatibility list |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 23 × 14 × 10 in | RIGOL price list |
| Shipping weight | 8 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: User manual.
CH3In the box, and what it is for
What it's good for
- High-side gate and switch-node measurements in SMPS and inverters.
- Mains-powered circuits where a grounded probe would short a floating node.
CH4Questions buyers ask
Why not just use a passive probe?
A passive probe's ground clip is tied to the scope's earth. Clipping it to a floating node in a mains-powered circuit can short it out and damage equipment. A differential probe measures between two points without that connection.
Which instruments does the PHA0150 work with?
RIGOL lists it for the DS1000Z Series, DS2000A Series, MSO2000A Series, MSO5000 Series, DS7000 / MSO7000 Series, DS8000-R Series, MSO8000 Series, DHO5000 Series and more. Tell us your model in the quote request and we'll confirm.
Can I order the PHA0150 with an oscilloscope?
Yes. Add both to your quote list and we quote them together.
CH1Request a quote for the PHA0150
Works with
DS1000Z Series · DS2000A Series · MSO2000A Series · MSO5000 Series · DS7000 / MSO7000 Series · DS8000-R Series · MSO8000 Series · DHO5000 Series · MHO5000 Series · DHO1000 Series · DHO4000 Series · DHO800 Series · DHO900 Series · DS70000 Series · DS80000 Series · DS9000 Series · MSO9000 Series · MHO2000 Series · MHO900 Series
RIGOL lists it for: DS1, DS1Z, DS2, MSO2, DS4, MSO4, MSO5, DS7, MSO7, DS8, MSO8. Not sure it fits your instrument? Ask in the quote request.
