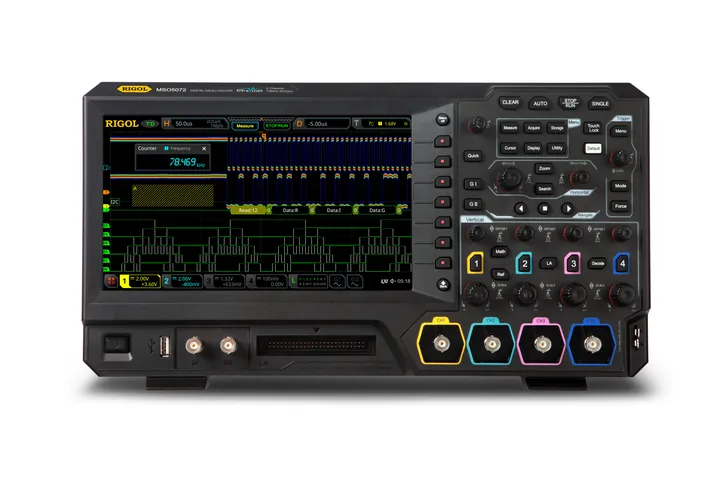

RIGOL MSO5000 Series
6 models, list from $899. Compare them, add options and accessories, and request one quote for the lot.
The MSO5000 is a full-size bench scope with a 9-inch touch screen and RIGOL's "seven instruments in one" approach: oscilloscope, 16-channel logic analyzer, spectrum analysis, arbitrary waveform generator, digital voltmeter, frequency counter and protocol analyzer. It samples at up to 8 GSa/s with 100 Mpts standard memory (200 Mpts optional) and captures over 500,000 waveforms a second.
It's also the most upgradeable scope in the range: bandwidth upgrades from 70 MHz up to 350 MHz, a 2-to-4-channel upgrade, memory, power analysis and Bode-plot options are all sold as licenses. That lets you buy the MSO5074 today and grow it as the work does. The digital channels are built in and need the PLA2216 logic probe.
CH1Models
| Model | Bandwidth | Channels | Description | List price | Quote |
|---|---|---|---|---|---|
| MSO5072 | 70 MHz | 2 | 70 MHz Digital Oscilloscope with 2 channels, 8GS/s, 100Mpoint memory | $899 | |
| MSO5074 | 70 MHz | 4 | 70 MHz Digital Oscilloscope with 4 channels, 8GS/s, 100Mpoint memory | $999 | |
| MSO5102 | 100 MHz | 2 | 100 MHz Digital Oscilloscope with 2 channels, 8GS/s, 100Mpoint memory | $1,099 | |
| MSO5104 | 100 MHz | 4 | 100 MHz Digital Oscilloscope with 4 channels, 8GS/s, 100Mpoint memory | $1,199 | |
| MSO5204 | 200 MHz | 4 | 200 MHz Digital Oscilloscope with 4 channels, 8GS/s, 100Mpoint memory | $1,599 | |
| MSO5354 | 350 MHz | 4 | 350 MHz Digital Oscilloscope with 4 channels, 8GS/s, 100Mpoint memory | $1,999 |
CH2Options and accessories
Options & upgrades (17)
| Part | Description | List price | Quote |
|---|---|---|---|
| MSO5000-AWG | Dual Channel 25MHz Waveform Generator | $299 | |
| MSO5000-BW0T1 | Bandwidth upgrade from 70MHz to 100MHz for MSO5000 | $299 | |
| MSO5000-AERO | MIL-STD 1553 Serial Triggering and Analysis | $329 | |
| MSO5000-AUDIO | Audio Serial Triggering and Analysis(I2S) | $329 | |
| MSO5000-AUTO | Automotive Serial Triggering and Analysis(CAN/LIN) | $329 | |
| MSO5000-COMP | Computer Serial Triggering and Analysis(RS232/UART) | $329 | |
| MSO5000-EMBD | Embedded Serial Triggering and Analysis(I2C, SPI) | $329 | |
| MSO5000-FLEX | FlexRay serial bus trigger and analysis (FlexRay) | $329 | |
| MSO5000-PWR | Integrated Power Analysis | $329 | |
| MSO5000-2RL | Record Length Upgrade to 200MPts | $439 | |
| MSO5000-4CH | 2Ch to 4Ch Upgrade | $439 | |
| MSO5000-BW1T2 | Bandwidth upgrade from 100MHz to 200MHz for MSO5000 | $549 | |
| MSO5000-BW2T3 | Bandwidth upgrade from 200MHz to 350MHz for MSO5000 | $659 | |
| MSO5000-BND | Application Bundle, includes all serial protocol analysis, measurement, and app options | $769 | |
| MSO5000-BW0T2 | Bandwidth upgrade from 70MHz to 200MHz for MSO5000 | $769 | |
| MSO5000-BW1T3 | Bandwidth upgrade from 100MHz to 350MHz for MSO5000 | $1,199 | |
| MSO5000-BW0T3 | Bandwidth upgrade from 70MHz to 350MHz for MSO5000 | $1,299 |
Probes (21)
| Part | Description | List price | Quote |
|---|---|---|---|
| PVP3150 | 150 MHz Passive Probe with 1x:10x selector. With bandwidth of 20 MHz in 1x mode | $35 | |
| PVP2350 | PVP2350 -- 350 MHz Passive Probe with 1x:10x selector. With bandwidth of 35 MHz in 1x mode -- Replaces the RP3300A | $47 | |
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| PLA2216 | 16 Channel Digital Logic Probe | $399 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1050D | High Voltage Differential Probe, DC-50 MHz, 7000 Vpp | $683 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| RP1002C | Current Probe, DC-1 MHz, 100A peak | $1,791 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (9)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 | |
| RA5040K | 40 dB attenuator accessory for oscilloscopes or generators | $47 | |
| RPA246 | Power analysis phase difference correction jig | $59 | |
| MSO5000-FPC | Front panel cover | $89 | |
| BAG-G1 | Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, or DS2000 scope. | $155 | |
| DK-DS6000 | Demo Board for oscilloscopes | $231 | |
| MSO5000-RM | Rack Mounting Kit | $299 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 |
Extended warranty (6)
| Part | Description | List price | Quote |
|---|---|---|---|
| MSO5072 (R5-1) | MSO5072 extended warranty, 2 years, option with new product | $81 | |
| MSO5074 (R5-1) | MSO5074 extended warranty, 2 years, option with new product | $81 | |
| MSO5102 (R5-1) | MSO5102 extended warranty, 2 years, option with new product | $99 | |
| MSO5104 (R5-1) | MSO5104 extended warranty, 2 years, option with new product | $99 | |
| MSO5204 (R5-1) | MSO5204 extended warranty, 2 years, option with new product | $135 | |
| MSO5354 (R5-1) | MSO5354 extended warranty, 2 years, option with new product | $180 |
