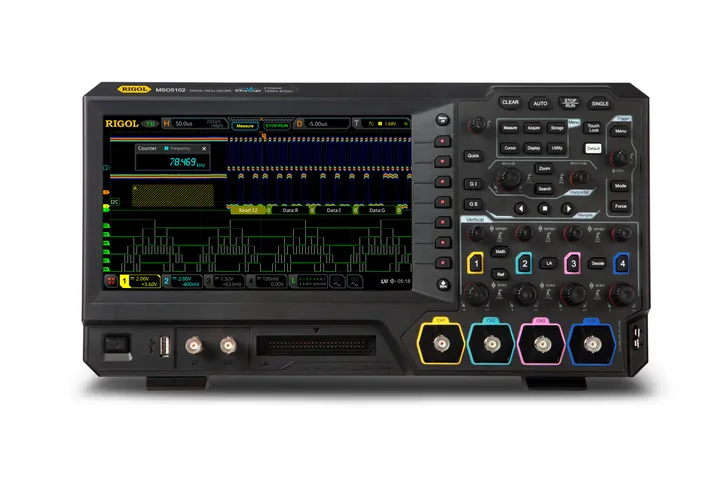

RIGOL MSO5102
100 MHz 2-Channel Mixed Signal Oscilloscope · MSO5000 Series
100 MHz Digital Oscilloscope with 2 channels, 8GS/s, 100Mpoint memory
List price $1,099
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL MSO5102 at a glance
- 100 MHz of bandwidth on 2 analog channels, plus 16 (PLA2216 probe required) digital channels.
- 8-bit vertical resolution for small signals riding on large ones.
- Up to 8 GSa/s and 100 Mpts standard memory (200 Mpts with the 2RL option).
- 16 digital channels built in (PLA2216 probe required).
- Over 500,000 wfms/s and up to 450,000 frames of hardware recording.
- Bandwidth, channel and analysis upgrades are licenses, so the scope can grow.
CH2RIGOL MSO5102 specifications
| Figure | MSO5102 | Source |
|---|---|---|
| Part number | MSO5102 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | MSO5000 Series | RIGOL price list |
| Bandwidth | 100 MHz | rigolna.com |
| Analog channels | 2 | rigolna.com |
| Vertical resolution | 8-bit | MSO5000 datasheet |
| Max. memory depth | 100 Mpts standard; 200 Mpts with MSO5000-2RL | MSO5000 datasheet |
| Max. real-time sample rate | 8 GSa/s | rigolna.com |
| Max. waveform capture rate | 500 Kwfms/s | rigolna.com |
| Digital channels | 16 (PLA2216 probe required) | MSO5000 datasheet |
| Display | 9-inch 1024×600 capacitive multi-touch | MSO5000 datasheet |
| Interfaces | USB Host & Device, LAN (LXI-C, 10/100/1000), HDMI, Trig out; GPIB via USB-GPIB option | MSO5000 datasheet |
| Dimensions | 367 × 200 × 130 mm (W×H×D) | MSO5000 datasheet |
| Weight | < 3.5 kg without package | MSO5000 datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 21 × 14 × 11 in | RIGOL price list |
| Shipping weight | 13 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- Passive Probes - One per channel
- Calibration Certificate
- Power Cord
- USB Cable
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Embedded and mixed-signal debug with protocol triggers and decodes.
- Switch-mode power analysis with the power option and current/differential probes.
- Lab benches that start at 70 MHz and upgrade bandwidth later.
CH4Questions buyers ask
Can I upgrade the bandwidth later?
Yes. RIGOL sells MSO5000 bandwidth upgrades as license options, up to 350 MHz, as well as a 2-to-4-channel upgrade for 2-channel models. They're listed under options on each model page.
Does it include the logic analyzer probe?
No. The 16 digital channels are built in, but RIGOL's PLA2216 logic probe is sold separately; add it to the same quote.
Do you ship the MSO5102 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the MSO5102
Options and accessories for the MSO5102
Options & upgrades (17)
| Part | Description | List price | Quote |
|---|---|---|---|
| MSO5000-AWG | Dual Channel 25MHz Waveform Generator | $299 | |
| MSO5000-BW0T1 | Bandwidth upgrade from 70MHz to 100MHz for MSO5000 | $299 | |
| MSO5000-AERO | MIL-STD 1553 Serial Triggering and Analysis | $329 | |
| MSO5000-AUDIO | Audio Serial Triggering and Analysis(I2S) | $329 | |
| MSO5000-AUTO | Automotive Serial Triggering and Analysis(CAN/LIN) | $329 | |
| MSO5000-COMP | Computer Serial Triggering and Analysis(RS232/UART) | $329 | |
| MSO5000-EMBD | Embedded Serial Triggering and Analysis(I2C, SPI) | $329 | |
| MSO5000-FLEX | FlexRay serial bus trigger and analysis (FlexRay) | $329 | |
| MSO5000-PWR | Integrated Power Analysis | $329 | |
| MSO5000-2RL | Record Length Upgrade to 200MPts | $439 | |
| MSO5000-4CH | 2Ch to 4Ch Upgrade | $439 | |
| MSO5000-BW1T2 | Bandwidth upgrade from 100MHz to 200MHz for MSO5000 | $549 | |
| MSO5000-BW2T3 | Bandwidth upgrade from 200MHz to 350MHz for MSO5000 | $659 | |
| MSO5000-BND | Application Bundle, includes all serial protocol analysis, measurement, and app options | $769 | |
| MSO5000-BW0T2 | Bandwidth upgrade from 70MHz to 200MHz for MSO5000 | $769 | |
| MSO5000-BW1T3 | Bandwidth upgrade from 100MHz to 350MHz for MSO5000 | $1,199 | |
| MSO5000-BW0T3 | Bandwidth upgrade from 70MHz to 350MHz for MSO5000 | $1,299 |
Probes (21)
| Part | Description | List price | Quote |
|---|---|---|---|
| PVP3150 | 150 MHz Passive Probe with 1x:10x selector. With bandwidth of 20 MHz in 1x mode | $35 | |
| PVP2350 | PVP2350 -- 350 MHz Passive Probe with 1x:10x selector. With bandwidth of 35 MHz in 1x mode -- Replaces the RP3300A | $47 | |
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| PLA2216 | 16 Channel Digital Logic Probe | $399 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1050D | High Voltage Differential Probe, DC-50 MHz, 7000 Vpp | $683 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| RP1002C | Current Probe, DC-1 MHz, 100A peak | $1,791 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (9)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 | |
| RA5040K | 40 dB attenuator accessory for oscilloscopes or generators | $47 | |
| RPA246 | Power analysis phase difference correction jig | $59 | |
| MSO5000-FPC | Front panel cover | $89 | |
| BAG-G1 | Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, or DS2000 scope. | $155 | |
| DK-DS6000 | Demo Board for oscilloscopes | $231 | |
| MSO5000-RM | Rack Mounting Kit | $299 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| MSO5102 (R5-1) | MSO5102 extended warranty, 2 years, option with new product | $99 |
