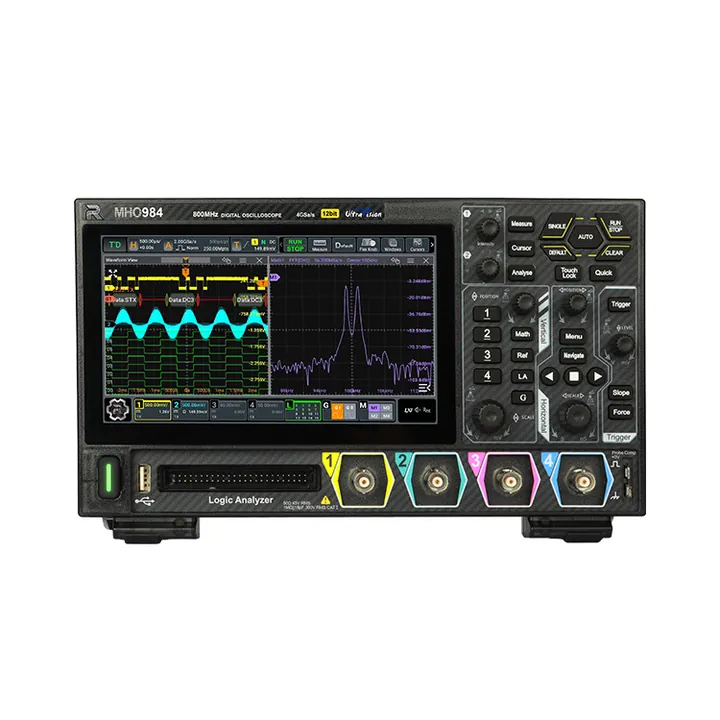

RIGOL MHO900 Series

3 models, list from $999. Compare them, add options and accessories, and request one quote for the lot.

The MHO900 puts 12-bit resolution, 4 GSa/s sampling and up to 800 MHz of bandwidth into the same compact chassis as the DHO800/900, at a price that used to buy a 100 MHz scope. All three models (MHO934 at 350 MHz, MHO954 at 500 MHz, MHO984 at 800 MHz) have four analog channels and 16 digital channels for mixed-signal work with the optional PLA2216 logic probe.

Memory is 100 Mpts standard and 500 Mpts with the memory option, and the scope captures up to 1,000,000 waveforms a second. An optional 2-channel 50/100 MHz waveform generator adds stimulus and Bode-plot loop analysis. The 7-inch 1024×600 touch screen, Flex Knob, HDMI, LAN and USB round it out, and it's powered through USB-C.
