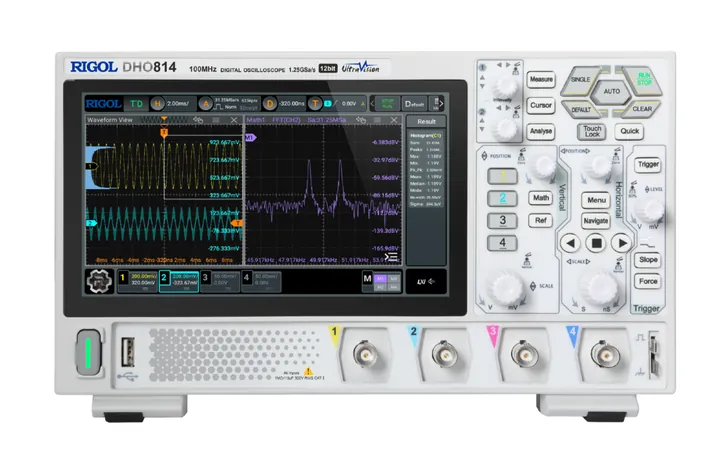

RIGOL DHO800 Series
4 models, list from $349. Compare them, add options and accessories, and request one quote for the lot.
The DHO800 brings 12-bit resolution to an entry-level price. With 16 times the vertical levels of an 8-bit scope and a low-noise front end, small signals sitting on a supply rail or a sensor output stay readable instead of disappearing into the trace thickness.
Models run 70 or 100 MHz with 2 or 4 channels, all at 1.25 GSa/s with 25 Mpts of memory and up to 1,000,000 waveforms a second in UltraAcquire mode. The 7-inch 1024×600 capacitive touch screen, the Flex Knob and HDMI out make it comfortable on a bench or in a classroom, and LAN gives you remote control from a browser. The 2-channel models also have an external trigger output.
CH1Models
CH2Options and accessories
Probes (19)
| Part | Description | List price | Quote |
|---|---|---|---|
| PVP2350 | PVP2350 -- 350 MHz Passive Probe with 1x:10x selector. With bandwidth of 35 MHz in 1x mode -- Replaces the RP3300A | $47 | |
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| RP6150A | 1.5GHz Passive Probe | $342 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1050D | High Voltage Differential Probe, DC-50 MHz, 7000 Vpp | $683 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (4)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 | |
| BAG-800 | Instrument Carry Case for a DHO800/900, DG800/900 Pro, DM800 | $69 | |
| RM5041 | Ultra-Portable Platform Rack Mount Kit | $179 |
Extended warranty (4)
| Part | Description | List price | Quote |
|---|---|---|---|
| DHO802 (R5-1) | DHO802 extended warranty, 2 years, option with new product | $30 | |
| DHO804 (R5-1) | DHO804 extended warranty, 2 years, option with new product | $40 | |
| DHO812 (R5-1) | DHO812 extended warranty, 2 years, option with new product | $40 | |
| DHO814 (R5-1) | DHO814 extended warranty, 2 years, option with new product | $50 |
