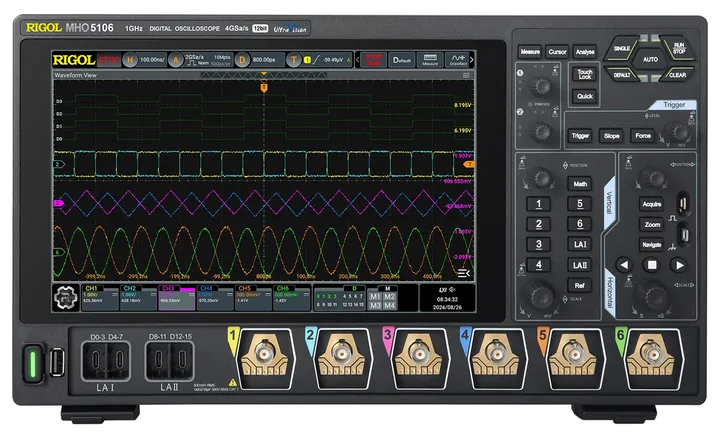

RIGOL MHO5000 Series
4 models, list from $5,599. Compare them, add options and accessories, and request one quote for the lot.
The MHO5000 is a 12-bit Centaurus-platform scope with a 10.1-inch 1280×800 touch screen and the analog channel count to watch a whole power stage at once: four channels on the MHO5054 and MHO5104, six on the MHO5056 and MHO5106. All sample at 4 GSa/s with 500 Mpts of memory and up to 1,000,000 waveforms a second.
Sixteen digital channels are built in (logic probe required), and the 4-channel models include RIGOL's waveform generator. The analysis set covers power analysis, Bode plots, histograms and protocol decodes. Like the MHO2000 it can run from a battery pack. Pick 500 MHz or 1 GHz.
CH1Models
| Model | Bandwidth | Channels | Description | List price | Quote |
|---|---|---|---|---|---|
| MHO5054 | 500 MHz | 4 | Digital Oscilloscope, 500MHz, 4GSa/s, 4CH, 12bit, with LA&AFG | $5,599 | |
| MHO5104 | 1 GHz | 4 | Digital Oscilloscope, 1GHz, 4GSa/s, 4CH, 12bit, with LA&AFG | $7,499 | |
| MHO5056 | 500 MHz | 6 | Digital Oscilloscope, 500MHz, 4GSa/s, 6CH, 12bit, with LA | $13,099 | |
| MHO5106 | 1 GHz | 6 | Digital Oscilloscope, 1GHz, 4GSa/s, 6CH, 12bit, with LA | $16,699 |
CH2Options and accessories
Options & upgrades (19)
| Part | Description | List price | Quote |
|---|---|---|---|
| MHO5000-AWG | Built-in Dual-Channel 50MHz Function Signal | $749 | |
| MHO5000-AEROA | MIL-STD-1553 Bus Trigger and Decoding Option | $929 | |
| MHO5000-AUDIOA | I2S Audio Bus Trigger and Analysis Option | $929 | |
| MHO5000-AUTOA | CAN/CAN-FD, LIN Bus Trigger and Decoding Option | $929 | |
| MHO5000-FlexA | FlexRay Trigger and Decoding Option | $929 | |
| DHO5000-AEROA | MIL-STD-1553 Bus Trigger and Decoding Option | $929 | |
| DHO5000-AUDIOA | I2S Audio Bus Trigger and Analysis Option | $929 | |
| DHO5000-AUTOA | CAN/CAN-FD, LIN Bus Trigger and Decoding Option | $929 | |
| DHO5000-FlexA | FlexRay Trigger and Decoding Option | $929 | |
| MHO5000-3PHA New | 3-Phase Power Analysis | $1,599 | |
| MHO5000-PWRA | Power Analysis Option | $1,599 | |
| DHO5000-PWRA | Power Analysis Option | $1,599 | |
| MHO5004-BWU05T10 | 500MHz to 1GHz Bandwidth Upgrade Option | $2,199 | |
| DHO5004-BWU05T10 | 500MHz to 1GHz Bandwidth Upgrade Option | $2,199 | |
| MHO5006-BND | Bundle Option | $2,719 | |
| DHO5000-BND | Bundle Option | $2,719 | |
| MHO5004-BND | Bundle Option | $3,089 | |
| MHO5006-BWU05T10 | 500MHz to 1GHz Bandwidth Upgrade Option | $4,299 | |
| DHO5008-BWU05T10 | 500MHz to 1GHz Bandwidth Upgrade Option | $4,299 |
Probes (19)
| Part | Description | List price | Quote |
|---|---|---|---|
| PLA3204 | Quad-channel Logic Analyzer Probe | $189 | |
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| PVA8150S | 1.5GHz active single-ended probe, input impedance 1MΩ | $2,149 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1020 | 200MHz optical isolation probe, standard with one 20x attenuator. | $5,499 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (4)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 | |
| RM6051 | Thunderbird Platform Rack Mount Kit | $259 | |
| BatHolder350 | Battery compartment | $1,099 |
Extended warranty (4)
| Part | Description | List price | Quote |
|---|---|---|---|
| MHO5054 (R5-1) | MHO5054 extended warranty, 2 years, option with new product | $423 | |
| MHO5056 (R5-1) | MHO5056 extended warranty, 2 years, option with new product | $990 | |
| MHO5104 (R5-1) | MHO5104 extended warranty, 2 years, option with new product | $567 | |
| MHO5106 (R5-1) | MHO5106 extended warranty, 2 years, option with new product | $1,269 |
