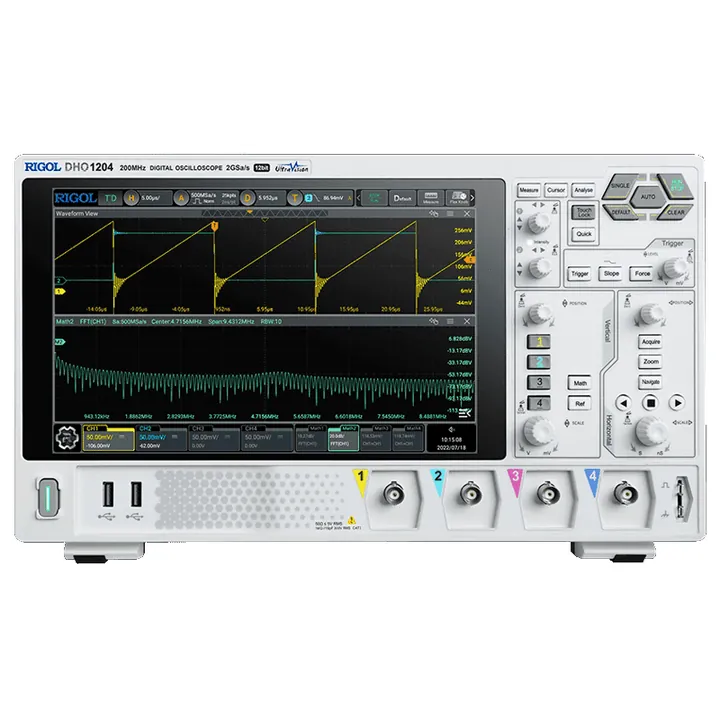

RIGOL DHO1000 Series
6 models, list from $799. Compare them, add options and accessories, and request one quote for the lot.
The DHO1000 is RIGOL's 12-bit high-resolution scope for benches that need more than the DHO800/900 but don't need the DHO4000's 4 GSa/s. Models run 70, 100 and 200 MHz in 2- or 4-channel versions, all with 50 Mpts of memory.
Like the rest of the DHO family it's built around low noise, so it suits power electronics, audio and sensor work where 8-bit scopes run out of resolution. Bandwidth upgrades are offered as options, so a 70 MHz unit can grow with the work.
CH1Models
| Model | Bandwidth | Channels | Description | List price | Quote |
|---|---|---|---|---|---|
| DHO1072 | 70 MHz | 2 | High Resolution 2 Channel, 70 MHz Digital Oscilloscope - 12 bit, 1 GSa/sec, 50 MPts Memory | $799 | |
| DHO1074 | 70 MHz | 4 | High Resolution 4 Channel, 70 MHz Digital Oscilloscope - 12 bit, 1 GSa/sec, 50 MPts Memory | $979 | |
| DHO1102 | 100 MHz | 2 | High Resolution 2 Channel, 100 MHz Digital Oscilloscope - 12 bit, 1 GSa/sec, 50 MPts Memory | $979 | |
| DHO1104 | 100 MHz | 4 | High Resolution 4 Channel, 100 MHz Digital Oscilloscope - 12 bit, 1 GSa/sec, 50 MPts Memory | $1,189 | |
| DHO1202 | 200 MHz | 2 | High Resolution 2 Channel, 200 MHz Digital Oscilloscope - 12 bit, 1 GSa/sec, 50 MPts Memory | $1,189 | |
| DHO1204 | 200 MHz | 4 | High Resolution 4 Channel, 200 MHz Digital Oscilloscope - 12 bit, 1 GSa/sec, 50 MPts Memory | $1,399 |
CH2Options and accessories
Options & upgrades (5)
| Part | Description | List price | Quote |
|---|---|---|---|
| DHO1000U-RLU-05 | 50 Mpts Record Length option | $89 | |
| DHO1000-RLU-01 | DHO1000 Series Deep Memory Upgrade License to 100 MPts memory | $149 | |
| DHO1000-BWU10T20 | DHO1000 Series Bandwidth Upgrade License from 100 MHz to 200 MHz | $300 | |
| DHO1000-BWU7T10 | DHO1000 Series Bandwidth Upgrade License from 70 MHz to 100 MHz | $300 | |
| DHO1000-BWU7T20 | DHO1000 Series Bandwidth Upgrade License from 70 MHz to 200 MHz | $500 |
Probes (17)
| Part | Description | List price | Quote |
|---|---|---|---|
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| RP1002C | Current Probe, DC-1 MHz, 100A peak | $1,791 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (2)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 |
Extended warranty (6)
| Part | Description | List price | Quote |
|---|---|---|---|
| DHO1072 (R5-1) | DHO1072 extended warranty, 2 years, option with new product | $63 | |
| DHO1074 (R5-1) | DHO1074 extended warranty, 2 years, option with new product | $81 | |
| DHO1102 (R5-1) | DHO1102 extended warranty, 2 years, option with new product | $81 | |
| DHO1104 (R5-1) | DHO1104 extended warranty, 2 years, option with new product | $99 | |
| DHO1202 (R5-1) | DHO1202 extended warranty, 2 years, option with new product | $99 | |
| DHO1204 (R5-1) | DHO1204 extended warranty, 2 years, option with new product | $117 |
