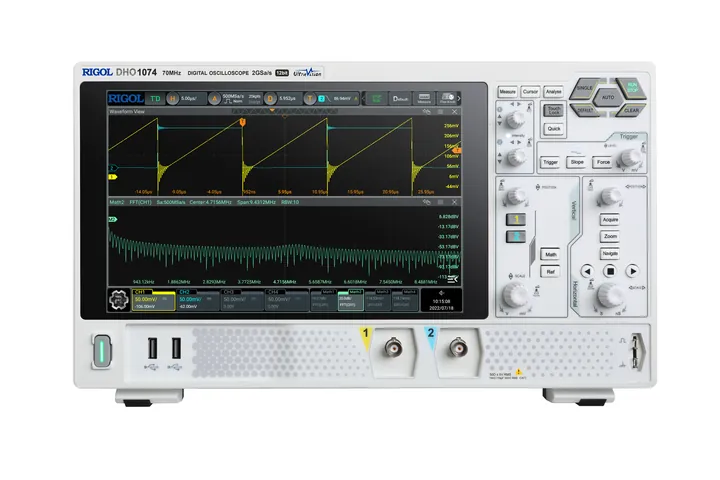

RIGOL DHO1074
70 MHz 4-Channel 12-bit Digital Oscilloscope · DHO1000 Series
High Resolution 4 Channel, 70 MHz Digital Oscilloscope - 12 bit, 1 GSa/sec, 50 MPts Memory
List price $979
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DHO1074 at a glance
- 70 MHz of bandwidth on 4 analog channels.
- 12-bit vertical resolution for small signals riding on large ones.
- 12-bit vertical resolution on every model.
- 50 Mpts memory across the series.
- 2- and 4-channel models from 70 to 200 MHz.
- Bandwidth upgrade options let a lower model grow later.
CH2RIGOL DHO1074 specifications
| Figure | DHO1074 | Source |
|---|---|---|
| Part number | DHO1074 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DHO1000 Series | RIGOL price list |
| Bandwidth | 70 MHz | rigolna.com |
| Analog channels | 4 | rigolna.com |
| Vertical resolution | 12-bit | rigolna.com |
| Max. memory depth | 50 Mpts | rigolna.com |
| Max. real-time sample rate | 2 GSa/s | rigolna.com |
| Max. waveform capture rate | 50 Kwfms/s | rigolna.com |
| Interfaces | USB 3.0 Host & Device, LAN (10/100/1000, LXI-C), HDMI | DHO1000 (HDO1000) datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 21 × 14 × 11 in | RIGOL price list |
| Shipping weight | 12 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- Power Cord
- Probes - 1 per channel
- USB Cable
- Calibration Certificate
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Power electronics and ripple measurements that need 12 bits.
- Audio and sensor signals with small details on large swings.
- A step-up bench scope with room to upgrade bandwidth.
CH4Questions buyers ask
What comes in the box with the RIGOL DHO1074?
RIGOL lists these standard accessories: Power Cord, Probes - 1 per channel, USB Cable, Calibration Certificate.
Can I add options to the DHO1074 later?
Yes. RIGOL lists 5 options and software packages for the DHO1000 Series (for example DHO1000-BWU10T20, DHO1000-BWU7T10, DHO1000-BWU7T20, DHO1000-RLU-01). Add them to your quote now or ask about an upgrade later.
Do you ship the DHO1074 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DHO1074
Options and accessories for the DHO1074
Options & upgrades (5)
| Part | Description | List price | Quote |
|---|---|---|---|
| DHO1000U-RLU-05 | 50 Mpts Record Length option | $89 | |
| DHO1000-RLU-01 | DHO1000 Series Deep Memory Upgrade License to 100 MPts memory | $149 | |
| DHO1000-BWU10T20 | DHO1000 Series Bandwidth Upgrade License from 100 MHz to 200 MHz | $300 | |
| DHO1000-BWU7T10 | DHO1000 Series Bandwidth Upgrade License from 70 MHz to 100 MHz | $300 | |
| DHO1000-BWU7T20 | DHO1000 Series Bandwidth Upgrade License from 70 MHz to 200 MHz | $500 |
Probes (17)
| Part | Description | List price | Quote |
|---|---|---|---|
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| RP1002C | Current Probe, DC-1 MHz, 100A peak | $1,791 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (2)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DHO1074 (R5-1) | DHO1074 extended warranty, 2 years, option with new product | $81 |
Other models
DHO1072 · DHO1102 · DHO1104 · DHO1202 · DHO1204 · compare the DHO1000 Series
