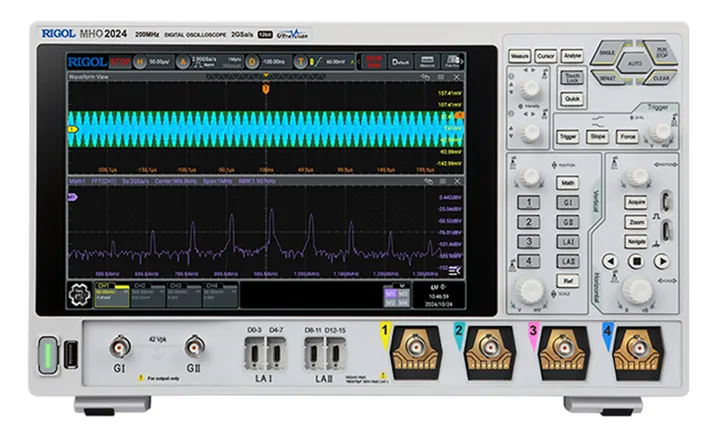

RIGOL MHO2000 Series
2 models, list from $2,999. Compare them, add options and accessories, and request one quote for the lot.
The MHO2000 is a 12-bit, four-channel scope built on RIGOL's Centaurus platform with a feature that's rare in its class: a battery pack, so it can be carried to a machine, a vehicle or a field site and run without a mains outlet. It has a 10.1-inch 1280×800 touch screen, 2 GSa/s sampling, 500 Mpts of memory and up to 1,000,000 waveforms a second in fast-recording mode.
Sixteen digital channels are built in (add the logic probe to use them), along with an external trigger input, and the analysis set covers protocol decoding, power analysis, histograms and Bode plots, with an optional waveform generator. Choose the MHO2024 at 200 MHz or the MHO2034 at 350 MHz.
CH1Models
CH2Options and accessories
Options & upgrades (7)
| Part | Description | List price | Quote |
|---|---|---|---|
| MHO2000-AEROA | MIL-STD-1553 bus triggering and decoding option | $359 | |
| MHO2000-AUDIOA | I2S audio bus triggering and analysis option | $359 | |
| MHO2000-AUTOA | CAN-FD, LIN bus triggering and decoding option | $359 | |
| MHO2000-FLEXA | FlexRay triggering and decoding option | $359 | |
| MHO2000-PWRA | Power analysis option | $359 | |
| MHO2000-AWG | Built-in dual-channel 50MHz function signal generator option | $529 | |
| MHO2000-BND | BND option - PWRA, AUDIOA, AUTOA, FLEXA, AEROA, AWG | $1,299 |
Probes (16)
| Part | Description | List price | Quote |
|---|---|---|---|
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (4)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 | |
| RM6051 | Thunderbird Platform Rack Mount Kit | $259 | |
| BatHolder350 | Battery compartment | $1,099 |
Extended warranty (2)
| Part | Description | List price | Quote |
|---|---|---|---|
| MHO2024 (R5-1) | MHO2024 extended warranty, 2 years, option with new product | $234 | |
| MHO2034 (R5-1) | MHO2034 extended warranty, 2 years, option with new product | $315 |
