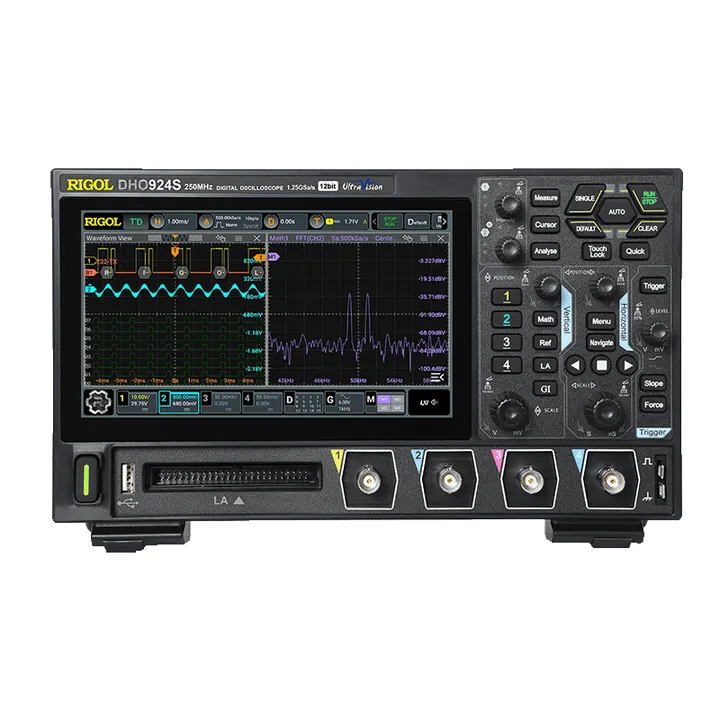

RIGOL DHO900 Series
4 models, list from $659. Compare them, add options and accessories, and request one quote for the lot.
The DHO900 is the DHO800's bigger sibling: the same 12-bit, low-noise core in the same compact chassis, with 125 or 250 MHz of bandwidth, four analog channels on every model, and 16 digital channels built in for mixed-signal work (add RIGOL's PLA2216 logic probe to use them).
Memory doubles to 50 Mpts, the capture rate reaches 1,000,000 waveforms a second in UltraAcquire mode, and the analysis set adds a waveform generator function, Bode plots and histograms. The S models (DHO914S, DHO924S) include the built-in signal source, which turns the scope into a loop-response tester for power supplies with nothing else on the bench.
CH1Models
| Model | Bandwidth | Channels | Description | List price | Quote |
|---|---|---|---|---|---|
| DHO914 | 125 MHz | 4 | 125MHz, 1.25GSa/s, 4 channels, 16 digital channels | $659 | |
| DHO914S | 125 MHz | 4 | 125MHz, 1.25GSa/s, 4 channels, 16 digital channels, including signal source | $769 | |
| DHO924 | 250 MHz | 4 | 250MHz, 1.25GSa/s, 4 channels, 16 digital channels | $769 | |
| DHO924S | 250 MHz | 4 | 250MHz, 1.25GSa/s, 4 channels, 16 digital channels, including signal source | $899 |
CH2Options and accessories
Probes (18)
| Part | Description | List price | Quote |
|---|---|---|---|
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| PLA2216 | 16 Channel Digital Logic Probe | $399 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1050D | High Voltage Differential Probe, DC-50 MHz, 7000 Vpp | $683 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (4)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 | |
| BAG-800 | Instrument Carry Case for a DHO800/900, DG800/900 Pro, DM800 | $69 | |
| RM5041 | Ultra-Portable Platform Rack Mount Kit | $179 |
Extended warranty (4)
| Part | Description | List price | Quote |
|---|---|---|---|
| DHO914 (R5-1) | DHO914 extended warranty, 2 years, option with new product | $60 | |
| DHO914S (R5-1) | DHO914S extended warranty, 2 years, option with new product | $70 | |
| DHO924 (R5-1) | DHO924 extended warranty, 2 years, option with new product | $70 | |
| DHO924S (R5-1) | DHO924S extended warranty, 2 years, option with new product | $81 |
