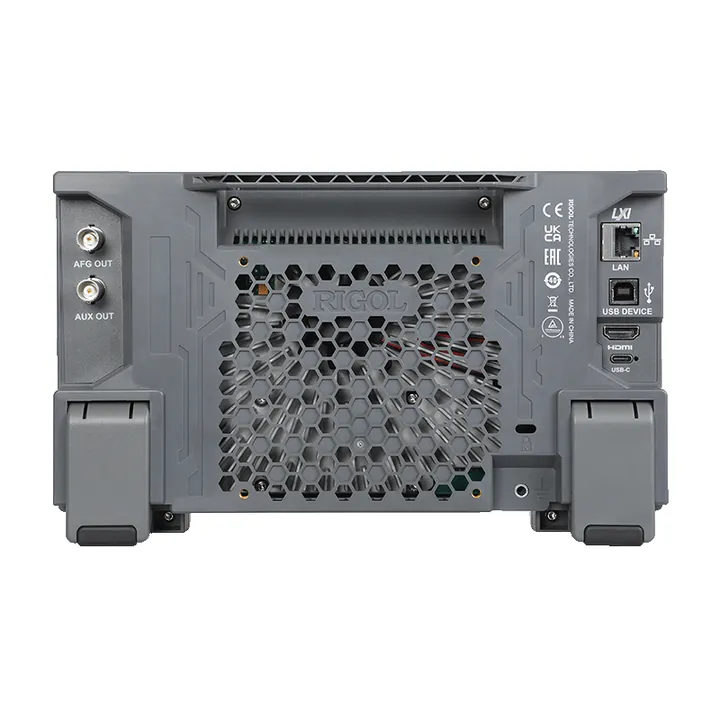

RIGOL DHO924
250 MHz 4-Channel 12-bit Mixed Signal Oscilloscope · DHO900 Series
250MHz, 1.25GSa/s, 4 channels, 16 digital channels
List price $769
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DHO924 at a glance
- 250 MHz of bandwidth on 4 analog channels, plus 16 (PLA2216 probe required) digital channels.
- 12-bit vertical resolution for small signals riding on large ones.
- 4 analog + 16 digital channels on every model (digital needs the PLA2216 probe).
- 12-bit resolution with 200 µV/div sensitivity.
- 50 Mpts memory and up to 1,000,000 wfms/s.
- S models add a built-in signal source for Bode plots and stimulus.
CH2RIGOL DHO924 specifications
| Figure | DHO924 | Source |
|---|---|---|
| Part number | DHO924 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DHO900 Series | RIGOL price list |
| Bandwidth | 250 MHz | rigolna.com |
| Analog channels | 4 | rigolna.com |
| Vertical resolution | 12-bit | DHO900 datasheet |
| Max. memory depth | 50 Mpts | DHO900 datasheet |
| Max. real-time sample rate | 1.25 GSa/s | DHO900 datasheet |
| Max. waveform capture rate | 1 Mwfms/s | rigolna.com |
| Digital channels | 16 (PLA2216 probe required) | DHO900 datasheet |
| Display | 7-inch 1024×600 capacitive multi-touch | DHO900 datasheet |
| Interfaces | USB Device & Host, LAN (LXI-C, Web Control), HDMI | DHO900 datasheet |
| Dimensions | 265.35 × 161.75 × 77.38 mm (W×H×D) | DHO900 datasheet |
| Weight | 1.78 kg without package | DHO900 datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 13.5 × 9.76 × 5.62 in | RIGOL price list |
| Shipping weight | 6.4 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- Probes - 1 per channel
- Calibration Certificate
- Power Cord
- USB Cable
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Embedded debug: analog rails plus SPI/I2C on the digital channels.
- Power-supply loop response with the DHO924S's source and Bode plot.
- A full mixed-signal bench in a footprint small enough to carry.
CH4Questions buyers ask
What does the S on DHO914S and DHO924S mean?
The S models include RIGOL's built-in signal source (arbitrary waveform generator), which also drives the Bode plot function. Otherwise they match the DHO914 and DHO924.
Do I need anything extra for the digital channels?
Yes, the PLA2216 16-channel logic probe. The channels are built in, but the probe is sold separately.
What comes in the box with the RIGOL DHO924?
RIGOL lists these standard accessories: Probes - 1 per channel, Calibration Certificate, Power Cord, USB Cable.
Do you ship the DHO924 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DHO924
Options and accessories for the DHO924
Probes (18)
| Part | Description | List price | Quote |
|---|---|---|---|
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| PLA2216 | 16 Channel Digital Logic Probe | $399 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1050D | High Voltage Differential Probe, DC-50 MHz, 7000 Vpp | $683 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (4)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 | |
| BAG-800 | Instrument Carry Case for a DHO800/900, DG800/900 Pro, DM800 | $69 | |
| RM5041 | Ultra-Portable Platform Rack Mount Kit | $179 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DHO924 (R5-1) | DHO924 extended warranty, 2 years, option with new product | $70 |
