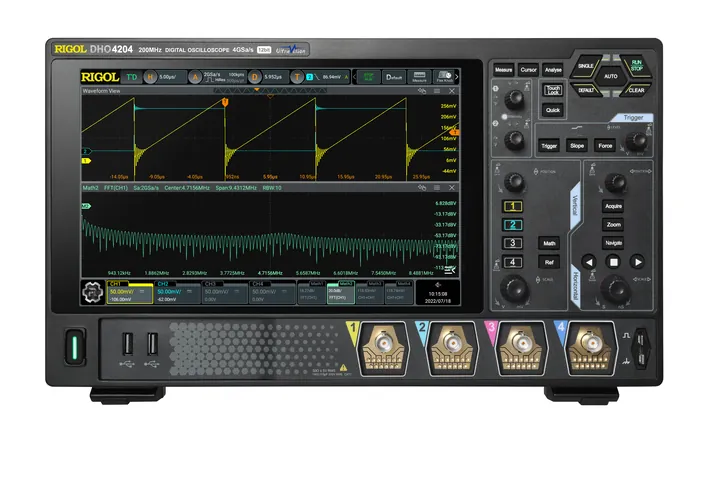

RIGOL DHO4000 Series
3 models, list from $2,829. Compare them, add options and accessories, and request one quote for the lot.
The DHO4000 is RIGOL's high-end 12-bit scope: 4 GSa/s sampling, 250 Mpts of memory and four channels at 200, 400 or 800 MHz. It's built for engineers who need both resolution and speed, such as power-electronics designers looking at fast switching edges and small conduction losses on the same trace.
Each model is a 4-channel instrument with 12-bit vertical resolution across the range, so the choice comes down to bandwidth: 200 MHz for power and mixed-signal work, 400 MHz for faster digital, 800 MHz for high-speed interfaces.
CH1Models
| Model | Bandwidth | Channels | Description | List price | Quote |
|---|---|---|---|---|---|
| DHO4204 | 200 MHz | 4 | High Resolution 4 Channel, 200 MHz Digital Oscilloscope - 12 bit, 4 GSa/sec, 250 MPts Memory | $2,829 | |
| DHO4404 | 400 MHz | 4 | High Resolution 4 Channel, 400 MHz Digital Oscilloscope - 12 bit, 4 GSa/sec, 250 MPts Memory | $4,059 | |
| DHO4804 | 800 MHz | 4 | High Resolution 4 Channel, 800 MHz Digital Oscilloscope - 12 bit, 4 GSa/sec, 250 MPts Memory | $5,079 |
CH2Options and accessories
Options & upgrades (10)
| Part | Description | List price | Quote |
|---|---|---|---|
| DHO4000-AEROA | DHO4000 Series Serial Decoding for Aerospace Upgrade License including MIL-STD-1553 | $329 | |
| DHO4000-AUDIOA | DHO4000 Series Serial Decoding for Audio Upgrade License including I2S | $329 | |
| DHO4000-AUTOA | DHO4000 Series Serial Decoding for Automotive Upgrade License including CAN-FD, and LIN | $329 | |
| DHO4000-FLEXA | DHO4000 Series Serial Decoding for FlexRay Upgrade License | $329 | |
| DHO4000-PWRA | DHO4000 Series Power Analysis Feature Option License | $329 | |
| DHO4000-RLU-05 | DHO4000 Series Deep Memory Upgrade License to 500 MPts memory | $489 | |
| DHO4000-BND | DHO4000 Series Options Bundle includes all Serial Decode & Power Analysis Options | $849 | |
| DHO4000-BWU2T4 | DHO4000 Series Bandwidth Upgrade License from 200 MHz to 400 MHz | $1,299 | |
| DHO4000-BWU4T8 | DHO4000 Series Bandwidth Upgrade License from 400 MHz to 800 MHz | $1,299 | |
| DHO4000-BWU2T8 | DHO4000 Series Bandwidth Upgrade License from 200 MHz to 800 MHz | $2,439 |
Probes (22)
| Part | Description | List price | Quote |
|---|---|---|---|
| RP3500A | 500 MHz Passive Probe | $231 | |
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| RP1002C | Current Probe, DC-1 MHz, 100A peak | $1,791 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| PCA1030 | 50 MHz, 30 A Current Probe for 7000 & 8000 Series Oscilloscopes | $4,890 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1020 | 200MHz optical isolation probe, standard with one 20x attenuator. | $5,499 | |
| PCA1150 | 10 MHz, 300 A Current Probe for 7000 & 8000 Series Oscilloscopes | $5,890 | |
| PCA2030 | 100 MHz, 30 A Current Probe for 7000 & 8000 Series Oscilloscopes | $6,390 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (3)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 | |
| BatHolder350 | Battery compartment | $1,099 |
Extended warranty (3)
| Part | Description | List price | Quote |
|---|---|---|---|
| DHO4204 (R5-1) | DHO4204 extended warranty, 2 years, option with new product | $243 | |
| DHO4404 (R5-1) | DHO4404 extended warranty, 2 years, option with new product | $333 | |
| DHO4804 (R5-1) | DHO4804 extended warranty, 2 years, option with new product | $423 |
