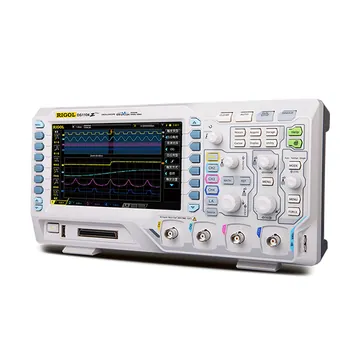

RIGOL DS1102Z-E
100 MHz 2-Channel Digital Oscilloscope · DS1000Z Series
100 MHz Digital Oscilloscope with 2 channels, 1GS/s, 24Mpoint memory
List price $319
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DS1102Z-E at a glance
- 100 MHz of bandwidth on 2 analog channels, plus N/A digital channels.
- 8-bit vertical resolution for small signals riding on large ones.
- UltraVision acquisition: up to 30,000 wfms/s and 24 Mpts memory (RIGOL figures).
- Segmented recording of up to 60,000 frames, so you can scroll back to an event.
- Plus models upgrade to 16 digital channels with the RPL1116 logic probe.
- -S models build in a 2-channel 25 MHz waveform generator.
CH2RIGOL DS1102Z-E specifications
| Figure | DS1102Z-E | Source |
|---|---|---|
| Part number | DS1102Z-E | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DS1000Z Series | RIGOL price list |
| Bandwidth | 100 MHz | rigolna.com |
| Analog channels | 2 | rigolna.com |
| Vertical resolution | 8-bit | DS1000Z datasheet |
| Max. memory depth | 24 Mpts | RIGOL product description |
| Max. real-time sample rate | 1 GSa/s | RIGOL product description |
| Max. waveform capture rate | up to 30,000 wfms/s | DS1000Z datasheet |
| Digital channels | N/A | rigolna.com |
| Built-in generator | N/A | rigolna.com |
| Display | 7-inch WVGA (800×480) TFT, intensity-graded | DS1000Z datasheet |
| Interfaces | USB Host & Device, LAN (LXI), AUX out | DS1000Z datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 18 × 11 × 12 in | RIGOL price list |
| Shipping weight | 10 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- Analog Probes - 1 per channel
- Calibration Certificate
- Power Cord
- USB Cable
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Teaching labs and first scopes for students and hobbyists.
- Debugging microcontroller I/O and serial buses on four channels.
- Field service where a light, compact 4-channel scope is enough.
CH4Questions buyers ask
Can I add logic analyzer channels later?
On the Plus models, yes: RIGOL lists an MSO upgrade and the RPL1116 logic probe to enable 16 digital channels. The DS1054Z and the 2-channel -E models don't take the logic upgrade.
Which model has a built-in signal generator?
The DS1074Z-S Plus and DS1104Z-S Plus include a 2-channel 25 MHz function/arbitrary generator.
What comes in the box with the RIGOL DS1102Z-E?
RIGOL lists these standard accessories: Analog Probes - 1 per channel, Calibration Certificate, Power Cord, USB Cable.
Can I add options to the DS1102Z-E later?
Yes. RIGOL lists 1 options and software packages for the DS1000Z Series (for example Ultra Station-adv). Add them to your quote now or ask about an upgrade later.
Do you ship the DS1102Z-E outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DS1102Z-E
Options and accessories for the DS1102Z-E
Software (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| Ultra Station-adv | Full advanced version of UltraStation wave generation software for DG4000 and DG5000 Series generators. This is a software upgrade license | $115 |
Probes (22)
| Part | Description | List price | Quote |
|---|---|---|---|
| PVP3150 | 150 MHz Passive Probe with 1x:10x selector. With bandwidth of 20 MHz in 1x mode | $35 | |
| PVP2150 | 150 MHz Passive Probe with 1x:10x selector. With bandwidth of 35 MHz in 1x mode | $40 | |
| RPL1116 | Standard logic probe for the DS1000Z series. Upgrades a DS1000Z Plus or DS1000Z-S Plus to 16 Digital Channels | $199 | |
| RP3500A | 500 MHz Passive Probe | $231 | |
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1050D | High Voltage Differential Probe, DC-50 MHz, 7000 Vpp | $683 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| RP1002C | Current Probe, DC-1 MHz, 100A peak | $1,791 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (7)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 | |
| RA5040K | 40 dB attenuator accessory for oscilloscopes or generators | $47 | |
| BAG-DS1000 | Instrument Carry Case for a DS1000 Series Oscilloscope | $69 | |
| RM-DG4000/DS1000Z | Rack Mounting Kit for a DG4000or DS1000Z | $159 | |
| DK-DS6000 | Demo Board for oscilloscopes | $231 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DS1102Z-E (R5-1) | DS1102Z-E extended warranty, 2 years, option with new product | $26 |
Other models
DS1054Z · DS1202Z-E · DS1074Z Plus · DS1104Z Plus · DS1074Z-S Plus · DS1104Z-S Plus · compare the DS1000Z Series
