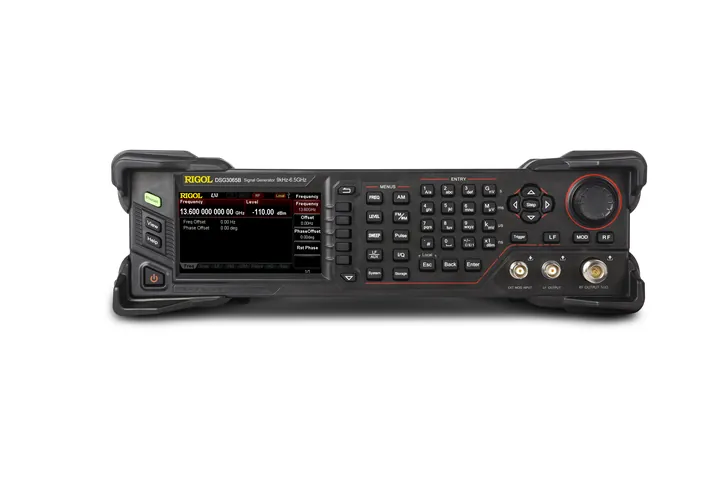

RIGOL DSG3000B Series
8 models, list from $9,999. Compare them, add options and accessories, and request one quote for the lot.
The DSG3000B is a 2U-high RF signal generator for 6.5 GHz (DSG3065B) or 13.6 GHz (DSG3136B), with phase noise under -116 dBc/Hz at 20 kHz offset (typical), amplitude accuracy under 0.5 dB (typical) and an output setting range from -130 dBm to +27 dBm.
AM, FM and phase modulation are standard, along with pulse modulation (70 dB on/off ratio) and a user-defined pulse-train generator. The -IQ models add I/Q modulation and an internal baseband generator, and the -OCXO models replace the standard 1 ppm clock with a 5 ppb high-stability timebase. USB, LAN and GPIB with SCPI make it easy to put in a test rack.
CH1Models
| Model | Max frequency | Description | List price | Quote |
|---|---|---|---|---|
| DSG3065B | 6.5 GHz | 6.5 GHz Signal Generator | $9,999 | |
| DSG3065B-OCXO | 6.5 GHz | 6.5 GHz RF Signal Source equipped with OCXO frequency timebase | $10,660 | |
| DSG3136B | 13.6 GHz | 13.6 GHz Signal Generator | $12,999 | |
| DSG3136B-OCXO | 13.6 GHz | 13.6 GHz RF Signal Source equipped with OCXO frequency timebase | $13,660 | |
| DSG3065B-IQ | 6.5 GHz | 6.5 GHz Signal Generator with external IQ inputs and Interal IQ baseband generator | $15,999 | |
| DSG3065B-IQ-OCXO | 6.5 GHz | 6.5 GHz RF Signal Source with IQ modulation capabilities equipped with OCXO frequency timebase | $16,660 | |
| DSG3136B-IQ | 13.6 GHz | 13.6 GHz Signal Generator with external IQ inputs and Interal IQ baseband generator | $17,999 | |
| DSG3136B-IQ-OCXO | 13.6 GHz | 13.6 GHz RF Signal Source with IQ modulation capabilities equipped with OCXO frequency timebase | $18,660 |
CH2Options and accessories
Options & upgrades (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DSG3000B-PUG | Pulse Modulation and Pulse Generator for DSG3000B | $599 |
Probes (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| NFP-3 | Near Field Probe, Requency Range: 30MHz to 3GHz | $499 |
Accessories (8)
| Part | Description | List price | Quote |
|---|---|---|---|
| RM-DSG3000 | Rack Mount kit for DSG3000 Signal Generators | $104 | |
| CB-NM-NM-75-L-12G | N(M)-N(M) RF Cable | $199 | |
| CB-NM-SMAM-75-L-12G | N(M)-SMA(M) RF Cable | $199 | |
| RF Adaptor Kit | Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs), N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs), SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs), BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs), 50 Ω BNC Impedance Adapter (1pcs) | $314 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 | |
| RF Attenuator Kit | Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) | $524 | |
| RX1000 | RF Demo Kit (Receiver) | $902 | |
| TX1000 | RF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier. | $993 |
Extended warranty (4)
| Part | Description | List price | Quote |
|---|---|---|---|
| DSG3065B (R5-1) | DSG3065B extended warranty, 2 years, option with new product | $900 | |
| DSG3065B-IQ (R5-1) | DSG3065B-IQ extended warranty, 2 years, option with new product | $1,440 | |
| DSG3136B (R5-1) | DSG3136B extended warranty, 2 years, option with new product | $1,170 | |
| DSG3136B-IQ (R5-1) | DSG3136B-IQ extended warranty, 2 years, option with new product | $1,620 |
