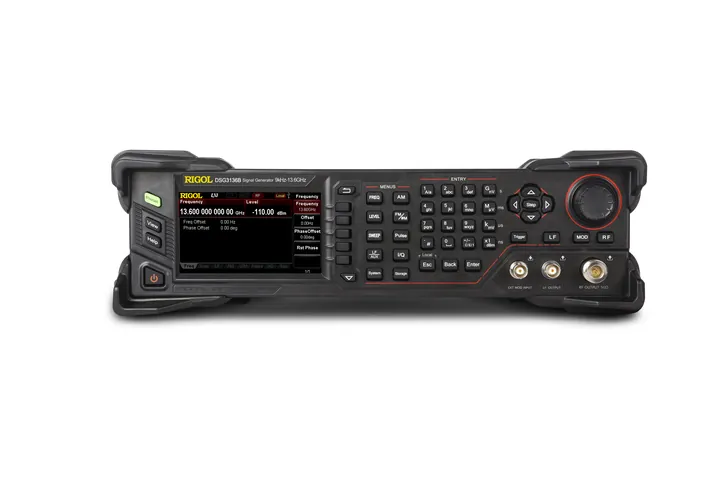

RIGOL DSG3136B
13.6 GHz RF Signal Generator · DSG3000B Series
13.6 GHz Signal Generator
List price $12,999
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DSG3136B at a glance
- Signals 13.60 GHz.
- 11 compatible RIGOL options and accessories, listed below, so you can quote everything at once.
- 6.5 or 13.6 GHz with < -116 dBc/Hz phase noise at 20 kHz (typ.).
- Standard AM/FM/ΦM and pulse modulation with 70 dB on/off ratio.
- -IQ models: I/Q modulation and baseband output; -OCXO: 5 ppb timebase.
- 2U rack height; USB, LAN and GPIB with SCPI.
CH2RIGOL DSG3136B specifications
| Figure | DSG3136B | Source |
|---|---|---|
| Part number | DSG3136B | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DSG3000B Series | RIGOL price list |
| Display | 4.3-inch TFT | DSG3000B datasheet |
| Interfaces | USB, LAN, GPIB (SCPI) | DSG3000B datasheet |
| Frequency range | 13.60 GHz | rigolna.com |
| Phase noise | < -116 dBc/Hz @ 20 kHz (typ.) | DSG3000B datasheet |
| Amplitude accuracy | <0.5 | rigolna.com |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 22 × 20 × 12 in | RIGOL price list |
| Shipping weight | 25 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- Calibration Certificate
- Power Cord
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Microwave component and radar test.
- Wireless receiver test with the -IQ models.
- Automated RF test racks.
CH4Questions buyers ask
What comes in the box with the RIGOL DSG3136B?
RIGOL lists these standard accessories: Calibration Certificate, Power Cord.
Can I add options to the DSG3136B later?
Yes. RIGOL lists 1 options and software packages for the DSG3000B Series (for example DSG3000B-PUG). Add them to your quote now or ask about an upgrade later.
Do you ship the DSG3136B outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DSG3136B
Options and accessories for the DSG3136B
Options & upgrades (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DSG3000B-PUG | Pulse Modulation and Pulse Generator for DSG3000B | $599 |
Probes (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| NFP-3 | Near Field Probe, Requency Range: 30MHz to 3GHz | $499 |
Accessories (8)
| Part | Description | List price | Quote |
|---|---|---|---|
| RM-DSG3000 | Rack Mount kit for DSG3000 Signal Generators | $104 | |
| CB-NM-NM-75-L-12G | N(M)-N(M) RF Cable | $199 | |
| CB-NM-SMAM-75-L-12G | N(M)-SMA(M) RF Cable | $199 | |
| RF Adaptor Kit | Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs), N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs), SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs), BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs), 50 Ω BNC Impedance Adapter (1pcs) | $314 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 | |
| RF Attenuator Kit | Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) | $524 | |
| RX1000 | RF Demo Kit (Receiver) | $902 | |
| TX1000 | RF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier. | $993 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DSG3136B (R5-1) | DSG3136B extended warranty, 2 years, option with new product | $1,170 |
Other models
DSG3065B · DSG3065B-OCXO · DSG3136B-OCXO · DSG3065B-IQ · DSG3065B-IQ-OCXO · DSG3136B-IQ · DSG3136B-IQ-OCXO · compare the DSG3000B Series
