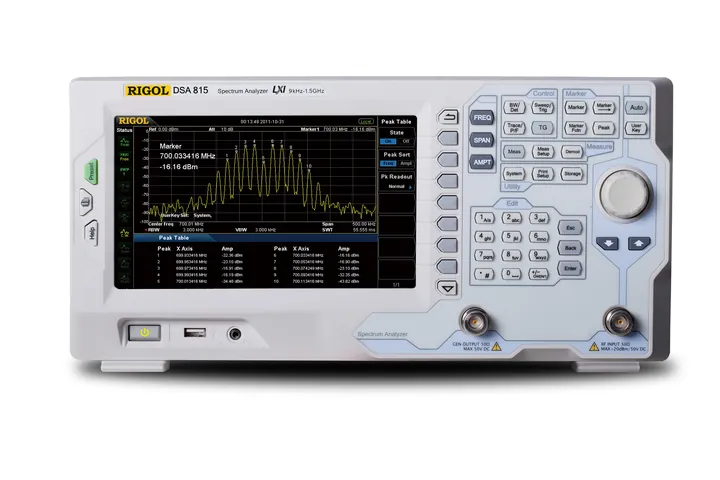

RIGOL DSA800 Series
8 models, list from $999. Compare them, add options and accessories, and request one quote for the lot.
The DSA800 is RIGOL's popular compact spectrum analyzer family: the DSA815 at 1.5 GHz, the DSA832 and DSA832E at 3.2 GHz, and the DSA875 at 7.5 GHz, with -TG versions that add a tracking generator for sweeping filters, cables and amplifiers. RIGOL's all-digital IF gives a minimum 10 Hz resolution bandwidth and displayed average noise down to -161 dBm (typical) on the higher models.
An 8-inch display, LAN (LXI) and USB (GPIB optional) are standard, and options add advanced measurements, EMI filters with a quasi-peak detector, and VSWR measurement. It's a common first analyzer for RF engineers and a long-time favorite on amateur-radio benches, because the -TG models make tuning filters and duplexers straightforward.
CH1Models
| Model | Max frequency | Description | List price | Quote |
|---|---|---|---|---|
| DSA815-TG | 1.5 GHz | Spectrum Analyzer, 9kHz to 1.5GHz with preamplifier and tracking generator | $999 | |
| DSA815 | 1.5 GHz | Spectrum Analyzer, 9kHz to 1.5GHz with preamplifier | $1,319 | |
| DSA832E | 3.2 GHz | 3.2 GHz Spectrum Analyzer | $1,999 | |
| DSA832E-TG | 3.2 GHz | 3.2 GHz Spectrum Analyzer with Built-In Tracking Generator | $2,599 | |
| DSA832-TG | 3.2 GHz | 3.2 GHz Spectrum Analyzer with Built-In Tracking Generator | $2,999 | |
| DSA832 | 3.2 GHz | 3.2 GHz Spectrum Analyzer | $4,079 | |
| DSA875 | 7.5 GHz | 7.5 GHz Spectrum Analyzer | $5,999 | |
| DSA875-TG | 7.5 GHz | 7.5 GHz Spectrum Analyzer with Built-In Tracking Generator | $5,999 |
CH2Options and accessories
Options & upgrades (3)
| Part | Description | List price | Quote |
|---|---|---|---|
| SSC-DSA | 2FSK Spectrum measurement and analysis | $209 | |
| AMK-DSA800 | Advanced Measurement Kit(DSA815Only) | $577 | |
| EMI-DSA800 | EMI Filter & Quasi-Peak Detector Kit(DSA815 Only) | $692 |
Software (4)
| Part | Description | List price | Quote |
|---|---|---|---|
| Ultra Spectrum | Software for the DSA1000 and DSA1000A series spectrum analyzers to be used within the UltraSigma package | $266 | |
| S1220 | ASK-FSK Demodulation Analysis Software | $399 | |
| S1210 | EMI Pre-Compliance Software | $499 | |
| VSWR-DSA800 | VSWR Measurement Kit (DSA815 Only) - Software only. Consider software with bridge under part number VB1020 instead. | $531 |
Probes (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| NFP-3 | Near Field Probe, Requency Range: 30MHz to 3GHz | $499 |
Accessories (14)
| Part | Description | List price | Quote |
|---|---|---|---|
| BAG-G1 | Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, or DS2000 scope. | $155 | |
| CB-NM-NM-75-L-12G | N(M)-N(M) RF Cable | $199 | |
| CB-NM-SMAM-75-L-12G | N(M)-SMA(M) RF Cable | $199 | |
| ATT03301H | 30dB High Power Attenuator, Max Power 100W | $230 | |
| RF Adaptor Kit | Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs), N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs), SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs), BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs), 50 Ω BNC Impedance Adapter (1pcs) | $314 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 | |
| RM-DSA800 | Rack Mounting Kit for a DSA800 Series Spectrum Analyzer | $393 | |
| RF CATV Kit | Kit Includes 50 Ω to 75 Ω Adaptor (2pcs) | $419 | |
| RF Attenuator Kit | Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) | $524 | |
| VB1032 | VSWR Bridge with VSWR-DSA800, VSWR-DSA1000 licenses included Frequency range: 1 MHz - 3.2 GHz, Typical Directivity: ≥ 30 dB | $659 | |
| VB1080 | VSWR Bridge and DSA800-VSWR software for Rigol Spectrum Analyzers. The VB1080's range is from 2-8 GHz. | $734 | |
| DSA Utility Kit | DSA Accessories Package including：N-SMA Cable, BNC-BNC Cable, N-BNC Adapter, N-SMA Adapter, 75Ω-50Ω Adapter, Antenna 2（900MHz/1.8GHz）, Antenna 2（2.4GHz） | $831 | |
| RX1000 | RF Demo Kit (Receiver) | $902 | |
| TX1000 | RF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier. | $993 |
Extended warranty (6)
| Part | Description | List price | Quote |
|---|---|---|---|
| DSA815 (R5-1) | DSA815 extended warranty, 2 years, option with new product | $119 | |
| DSA815-TG (R5-1) | DSA815-TG extended warranty, 2 years, option with new product | $90 | |
| DSA832 (R5-1) | DSA832 extended warranty, 2 years, option with new product | $368 | |
| DSA832-TG (R5-1) | DSA832-TG extended warranty, 2 years, option with new product | $270 | |
| DSA875 (R5-1) | DSA875 extended warranty, 2 years, option with new product | $540 | |
| DSA875-TG (R5-1) | DSA875-TG extended warranty, 2 years, option with new product | $540 |
