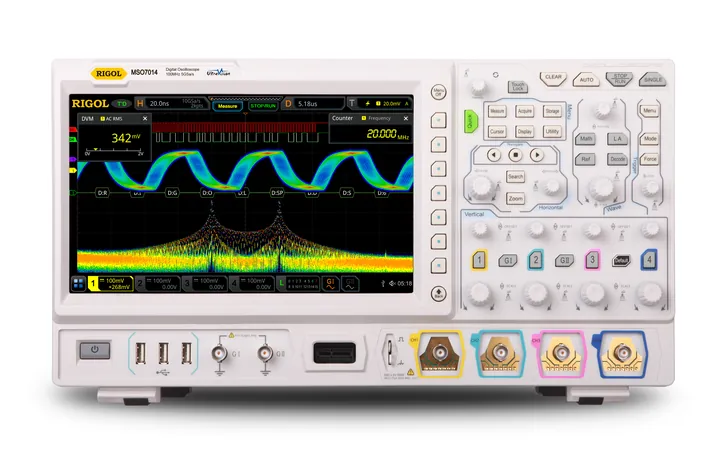

RIGOL MSO7014
100 MHz 4-Channel Mixed Signal Oscilloscope · DS7000 / MSO7000 Series
100MHZ Digital Oscilloscope with 4 Channels, 10GSa/Sec Sampling
List price $4,199
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL MSO7014 at a glance
- 100 MHz of bandwidth on 4 analog channels.
- Up to 10 gsa/s sampling and up to up to 500 mpts (option) of record length, so long captures keep their detail.
- 10 GSa/s real-time sampling on 4 analog channels.
- Over 600,000 wfms/s and up to 450,000 frames of hardware recording.
- 10.1-inch capacitive multi-touch screen.
- MSO models add 16 digital channels; bandwidth and memory upgrade by license.
CH2RIGOL MSO7014 specifications
| Figure | MSO7014 | Source |
|---|---|---|
| Part number | MSO7014 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DS7000 / MSO7000 Series | RIGOL price list |
| Bandwidth | 100 MHz | RIGOL product description |
| Analog channels | 4 | RIGOL product description |
| Max. memory depth | up to 500 Mpts (option) | MSO/DS7000 datasheet |
| Max. real-time sample rate | 10 GSa/s | MSO/DS7000 datasheet |
| Max. waveform capture rate | over 600,000 wfms/s | MSO/DS7000 datasheet |
| Display | 10.1-inch capacitive multi-touch | MSO/DS7000 datasheet |
| Interfaces | USB Host & Device, LAN (LXI), HDMI, Trig out; USB-GPIB optional | MSO/DS7000 datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 21 × 18 × 15 in | RIGOL price list |
| Shipping weight | 20 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · User manual · Quick guide.
CH3In the box, and what it is for
What it's good for
- Embedded and power debugging with serial decodes on one big screen.
- Timing and jitter work that benefits from 10 GSa/s.
- Labs that standardize on one upgradeable mid-range platform.
CH4Questions buyers ask
What's the difference between DS7000 and MSO7000?
The MSO7000 includes 16 digital channels for mixed-signal work. The DS7000 is the 4-channel analog version and can be upgraded with RIGOL's MSO option.
Can I add options to the MSO7014 later?
Yes. RIGOL lists 18 options and software packages for the DS7000 / MSO7000 Series (for example DS7000-2RL, DS7000-5RL, DS7000-AERO, DS7000-AUDIO). Add them to your quote now or ask about an upgrade later.
Which probes work with the MSO7014?
RIGOL lists NFP-3, PCA1030, PCA1150, PCA2030, PHA0150, PHA1150 and more for this series; they're under Compatible options and accessories below.
Do you ship the MSO7014 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the MSO7014
Options and accessories for the MSO7014
Options & upgrades (17)
| Part | Description | List price | Quote |
|---|---|---|---|
| MSO7000-AWG | Dual Channel 25MHz Generator (MSO Only) | $669 | |
| DS7000-2RL | Memory Upgrade to 250MPts | $1,099 | |
| DS7000-AERO | MIL-STD-1553 Protocol Trigger and Analysis | $1,099 | |
| DS7000-AUDIO | I2S Protocol Trigger and Analysis | $1,099 | |
| DS7000-AUTO | CAN and LIN Protocol Trigger and Analysis | $1,099 | |
| DS7000-COMP | RS232/UART Protocol Trigger and Analysis | $1,099 | |
| DS7000-EMBD | I2C and SPI Protocol Trigger and Analysis | $1,099 | |
| DS7000-FLEX | FlexRay Protocol Trigger and Analysis | $1,099 | |
| DS7000-PWR | Power Analysis Measurements | $1,099 | |
| DS7000-BW1T2 | Bandwidth Upgrade – 100-200MHz | $1,199 | |
| DS7000-5RL | Memory Upgrade to 500MPts | $1,699 | |
| DS7000-BW3T5 | Bandwidth Upgrade – 350-500MHz | $1,699 | |
| DS7000-BW2T3 | Bandwidth Upgrade – 200-350MHz | $1,799 | |
| DS7000-BND | All Option Bundle (Serial Decodes, AWG, Power) | $2,399 | |
| DS7000-BW1T3 | Bandwidth Upgrade – 100-350MHz | $2,999 | |
| DS7000-BW2T5 | Bandwidth Upgrade – 350-500MHz | $3,399 | |
| DS7000-BW1T5 | Bandwidth Upgrade – 100-500MHz | $4,599 |
Software (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| UPA-DS | Power Analysis Software for DS2, MSO2, DS4, & MSO4 series oscilloscopes | $880 |
Probes (24)
| Part | Description | List price | Quote |
|---|---|---|---|
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| RP6150A | 1.5GHz Passive Probe | $342 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| NFP-3 | Near Field Probe, Requency Range: 30MHz to 3GHz | $499 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1050D | High Voltage Differential Probe, DC-50 MHz, 7000 Vpp | $683 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP7080S | Active single-ended, 800 MHz probe for DS6000 or DS/MSO4000 Series Oscilloscopes | $1,049 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| RP1002C | Current Probe, DC-1 MHz, 100A peak | $1,791 | |
| RP7080 | Active, differential, 800 MHz probe for DS6000 or DS/MSO4000 Series Oscilloscopes | $2,099 | |
| RP7150S | Active single-ended, 1.5GHz probe for DS6000 or DS/MSO4000 Series Oscilloscopes | $2,520 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP7150 | 1.5 GHz Bandwidth Active Probe Kit option for DS6000 Series Oscilloscopes | $4,736 | |
| PCA1030 | 50 MHz, 30 A Current Probe for 7000 & 8000 Series Oscilloscopes | $4,890 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PCA1150 | 10 MHz, 300 A Current Probe for 7000 & 8000 Series Oscilloscopes | $5,890 | |
| PCA2030 | 100 MHz, 30 A Current Probe for 7000 & 8000 Series Oscilloscopes | $6,390 |
Accessories (14)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| RA5040K | 40 dB attenuator accessory for oscilloscopes or generators | $47 | |
| RPA246 | Power analysis phase difference correction jig | $59 | |
| DK-DS6000 | Demo Board for oscilloscopes | $231 | |
| RM6041 | Rack Mount Kit for RSA5, RSA3, DS7000, MSO8000 | $309 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 | |
| TF-AENET-MAT-STP New | Automotive Ethernet SMA-MATEnet adapter | $519 | |
| TF-AENET-MTD-STP New | Automotive Ethernet SMA-HMTD adapter | $519 | |
| TF-AENET-PAD-STP New | Car Ethernet welded adapter | $519 | |
| TF-AENET-MB-STP New | Car Ethernet distribution board | $1,599 | |
| TF-PCIE3-CLBX1X16-STP New | PCIE3 Compliance CLBX1X16 | $8,849 | |
| TF-PCIE3-CBB-STP New | PCIE3 Compliance CBB | $9,579 | |
| TF-PCIE3-CLBX4X8-STP New | PCIE Compliance CLBX4X8 | $9,759 | |
| TF-PCIE3-KIT-STP New | PCIE3 Compliance Test Fixture KIT | $27,519 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| MSO7014 (R5-1) | MSO7014 extended warranty, 2 years, option with new product | $315 |
Other models
DS7014 · DS7024 · MSO7024 · DS7034 · MSO7034 · DS7054 · MSO7054 · compare the DS7000 / MSO7000 Series
