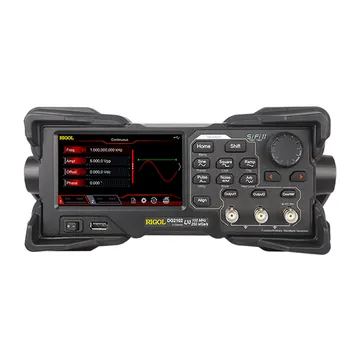

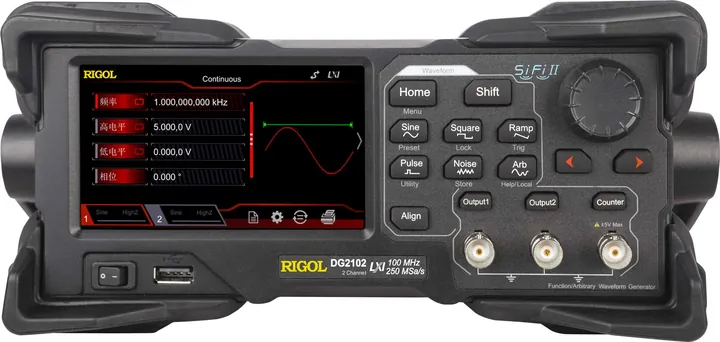

RIGOL DG2102
100 MHz 2-Channel Arbitrary Waveform Generator · DG2000 Series
100MHz Function Generator, 2 Channel, 250MSa/sec, 16Bit Resolution, 16M Memory
List price $1,199
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DG2102 at a glance
- Signals 100 MHz on 2 channels channels.
- 250 MSa/s sample rate for clean edges and arbitrary waveforms.
- 2 channels at 50, 70 or 100 MHz.
- 250 MSa/s, 16-bit, 16 Mpts arb memory per channel.
- ±1 ppm stability and -105 dBc/Hz phase noise.
- Built-in 240 MHz frequency counter.
CH2RIGOL DG2102 specifications
| Figure | DG2102 | Source |
|---|---|---|
| Part number | DG2102 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DG2000 Series | RIGOL price list |
| Analog channels | 2 channels | rigolna.com |
| Vertical resolution | 16-bit | DG2000 datasheet |
| Max. real-time sample rate | 250 MSa/s | RIGOL product description |
| Interfaces | USB Host & Device, LAN (LXI Core 2011); GPIB via USB-GPIB | DG2000 datasheet |
| Frequency range | 100 MHz | rigolna.com |
| Square wave up to | 25 MHz | rigolna.com |
| Arbitrary waveform memory | 16 M | rigolna.com |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 18 × 14 × 10 in | RIGOL price list |
| Shipping weight | 12 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · User manual · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- CB-BNC-BNC-MM-100
- USB Cable
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Clock and data stimulus for digital designs.
- Long arbitrary waveforms for sensor and medical signal simulation.
- Two-channel phase-related signals.
CH4Questions buyers ask
What comes in the box with the RIGOL DG2102?
RIGOL lists these standard accessories: CB-BNC-BNC-MM-100, USB Cable.
Can I add options to the DG2102 later?
Yes. RIGOL lists 1 options and software packages for the DG2000 Series (for example Ultra Station-adv). Add them to your quote now or ask about an upgrade later.
Do you ship the DG2102 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DG2102
Options and accessories for the DG2102
Software (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| Ultra Station-adv | Full advanced version of UltraStation wave generation software for DG4000 and DG5000 Series generators. This is a software upgrade license | $115 |
Accessories (3)
| Part | Description | List price | Quote |
|---|---|---|---|
| RM-1-DG1000Z | Rack Mounting Kit for one DG1000Z | $100 | |
| RM-2-DG1000Z | Rack Mounting Kit for two DG1000Z | $134 | |
| USB-GPIB-L | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DG2102 (R5-1) | DG2102 extended warranty, 2 years, option with new product | $90 |
