RIGOL RSA6140
14 GHz Real-Time Spectrum Analyzer · RSA6000 Series
Real-time Spectrum Analyzer, 5 kHz ~ 14 GHz
List price $23,899
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL RSA6140 at a glance
- Measures 5 kHz ~ 14 GHz.
- Tracking generator built in, for filter and cable response sweeps.
- 5 kHz to 8.5, 14 or 26.5 GHz.
- 80 MHz real-time bandwidth, 200 MHz optional.
- Swept, real-time, VSA, EMI and demodulation modes.
CH2RIGOL RSA6140 specifications
| Figure | RSA6140 | Source |
|---|---|---|
| Part number | RSA6140 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | RSA6000 Series | RIGOL price list |

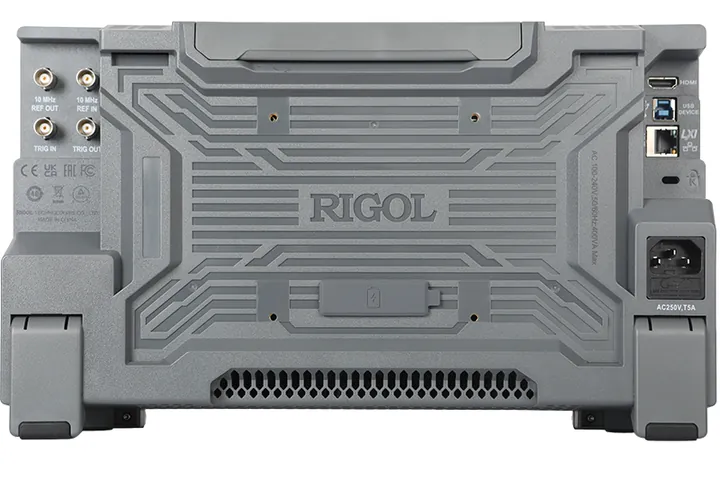

| Interfaces | LAN, USB, HDMI | RSA6000 datasheet |
| Frequency range | 5 kHz ~ 14 GHz | rigolna.com |
| Tracking generator | Yes | rigolna.com |
| Real-time bandwidth | 80 MHz (200 MHz option) | rigolna.com |
| EMI pre-compliance | Option | rigolna.com |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 20 × 16 × 14 in | RIGOL price list |
| Shipping weight | 25 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- Calibration Certificate
- Power Cord
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Microwave and mmWave-adjacent component test up to 26.5 GHz.
- Wideband signal capture for radar and communications.
- EMI investigations in the lab.
CH4Questions buyers ask
What comes in the box with the RIGOL RSA6140?
RIGOL lists these standard accessories: Calibration Certificate, Power Cord.
Can I add options to the RSA6140 later?
Yes. RIGOL lists 15 options and software packages for the RSA6000 Series (for example RSA6000-ADM, RSA6000-AMK, RSA6000-B200, RSA6000-BTX). Add them to your quote now or ask about an upgrade later.
Do you ship the RSA6140 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the RSA6140
Options and accessories for the RSA6140
Options & upgrades (15)
| Part | Description | List price | Quote |
|---|---|---|---|
| RSA6000-AMK | Advanced Measurement Kit | $769 | |
| RSA6000-P08 | Preamplifier (PA), 8.5 GHz | $1,099 | |
| RSA6000-ADM | Analog Demodulation Application Software | $1,399 | |
| RSA6000-EMI | EMI Measurement Application Software | $1,399 | |
| RSA6000-PNOISE | Phase Noise Measurement | $1,399 | |
| RSA6000-T08 | 8.5 GHz Tracking Generator Output | $1,399 | |
| RSA6000-P14 | Preamplifier (PA), 14 GHz | $1,999 | |
| RSA6000-B200 | 200 MHz Analysis Bandwidth | $2,699 | |
| RSA6000-P26 | Preamplifier (PA), 26.5 GHz | $2,699 | |
| RSA6000-VSA | Vector Signal Analysis Application Software | $2,699 | |
| RSA6000-LORA | LORA Measurement | $2,799 | |
| RSA6000-ZGB | ZIGBEE Measurement | $2,799 | |
| RSA6000-BTX | Bluetooth LE TX Measurement | $3,299 | |
| RSA6000-PULSE | Pulse Measurement | $3,299 | |
| RSA6000-RB200 | 200 MHz Real-time Bandwidth | $4,199 |
Accessories (7)
| Part | Description | List price | Quote |
|---|---|---|---|
| CB-NM-NM-75-L-12G | N(M)-N(M) RF Cable | $199 | |
| CB-NM-SMAM-75-L-12G | N(M)-SMA(M) RF Cable | $199 | |
| ATT03301H | 30dB High Power Attenuator, Max Power 100W | $230 | |
| RM6051 | Thunderbird Platform Rack Mount Kit | $259 | |
| RF CATV Kit | Kit Includes 50 Ω to 75 Ω Adaptor (2pcs) | $419 | |
| RF Attenuator Kit | Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) | $524 | |
| DSA Utility Kit | DSA Accessories Package including：N-SMA Cable, BNC-BNC Cable, N-BNC Adapter, N-SMA Adapter, 75Ω-50Ω Adapter, Antenna 2（900MHz/1.8GHz）, Antenna 2（2.4GHz） | $831 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| RSA6140 (R5-1) | RSA6140 extended warranty, 2 years, option with new product | $1,953 |
