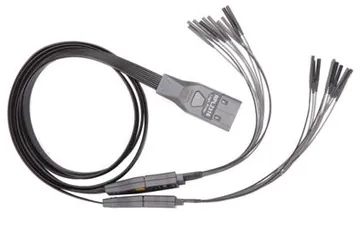

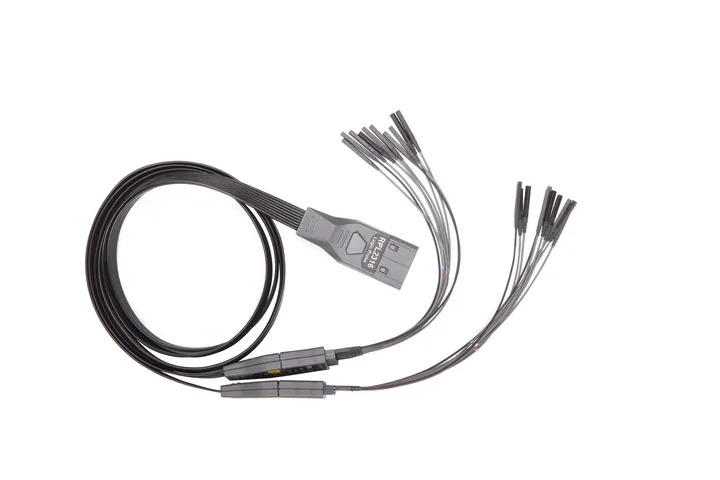

RIGOL RPL2316
Logic Analyzer Probe
Standard logic probe for MSO4000 and MSO2000A
List price $399
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL RPL2316 at a glance
- Works with RIGOL MSO2000A Series, MSO8000 Series.
- Logic probe that connects a RIGOL scope's digital channels to your circuit.
- Lets the scope trigger on and decode digital buses alongside analog signals.
CH2RIGOL RPL2316 specifications
| Figure | RPL2316 | Source |
|---|---|---|
| Part number | RPL2316 | RIGOL |
| Brand | RIGOL | RIGOL |
| Probe type | Logic Analyzer | RIGOL product description |
| Works with | MSO2000A Series, MSO8000 Series | RIGOL compatibility list |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 14 × 10 × 4 in | RIGOL price list |
| Shipping weight | 2 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference.
CH3In the box, and what it is for
What it's good for
- Decoding SPI, I2C, UART and parallel buses.
- Correlating digital events with analog measurements.
CH4Questions buyers ask
Will this logic probe fit my scope?
RIGOL logic probes are specific to scope families. Check the Works with list, or tell us your scope model and we'll confirm.
Which instruments does the RPL2316 work with?
RIGOL lists it for the MSO2000A Series, MSO8000 Series. Tell us your model in the quote request and we'll confirm.
Can I order the RPL2316 with an oscilloscope?
Yes. Add both to your quote list and we quote them together.
CH1Request a quote for the RPL2316
Works with
MSO2000A Series · MSO8000 Series
RIGOL lists it for: MSO2, MSO4. Not sure it fits your instrument? Ask in the quote request.
