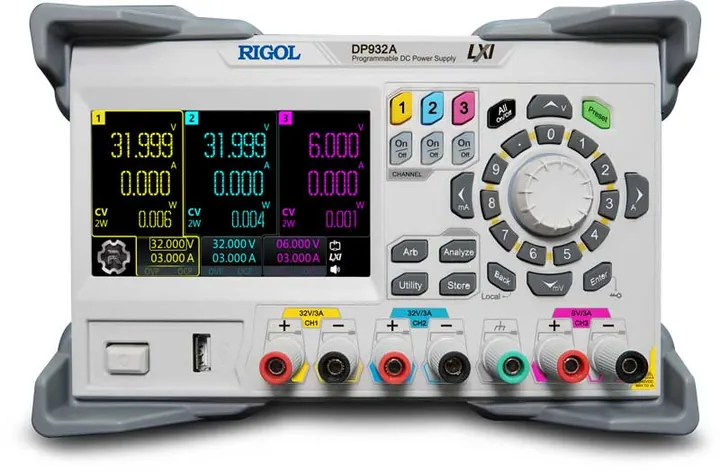

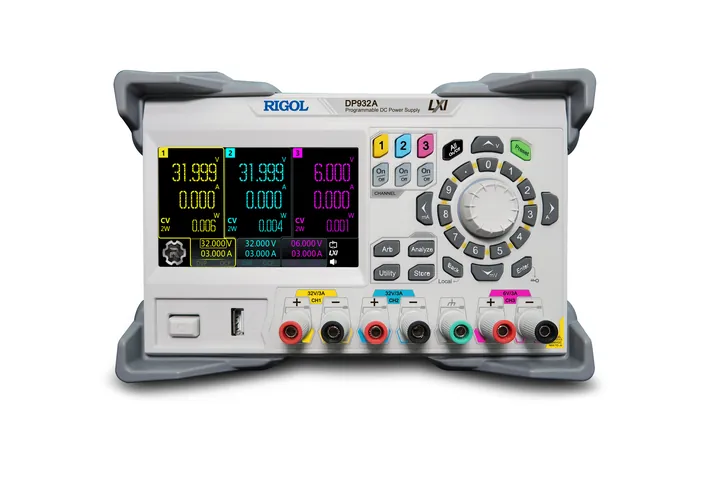

RIGOL DP932A
210 W 3-Channel Programmable DC Power Supply · DP900 Series
210 W, 3 channel fully isolated programmable linear DC power supply with high resolution and high speed arbitrary function
List price $689
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DP932A at a glance
- 3 outputs with 210 W total.
- Output up to 64 Volts / 6 Amps per output.
- Three fully isolated outputs: 32 V/3 A, 32 V/3 A, 6 V/3 A (DP932A/U).
- Internal series/parallel combining of CH1 and CH2.
- 4.3-inch color touch screen; USB, LAN and digital I/O.
- Ripple and noise under 350 µVrms / 2 mVpp.
CH2RIGOL DP932A specifications
| Figure | DP932A | Source |
|---|---|---|
| Part number | DP932A | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DP900 Series | RIGOL price list |
| Display | 4.3-inch color touch screen | DP900 datasheet |
| Interfaces | USB Host & Device, LAN, digital I/O | DP900 datasheet |
| Total power | 210 Watts | rigolna.com |
| Outputs | 3 channel(s) | rigolna.com |
| Max. voltage | 64 Volts | rigolna.com |
| Max. current | 6 Amps | rigolna.com |
| Output ranges | up to 64 Volts / 6 Amps per output (see datasheet for each channel) | rigolna.com |
| Readback resolution | 1 mV / 1 mA display resolution | DP900 datasheet |
| Ripple and noise | < 350 µVrms / 2 mVpp | DP900 datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 23 × 15 × 12 in | RIGOL price list |
| Shipping weight | 30 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- Power Cord
- Spare Fuse
- Two pairs of 10 A testing cables
- USB Cable
- Calibration Certificate
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Op-amp and analog boards that need isolated ± rails.
- University labs (DP932U with safety sockets).
- Scripted power sequencing with arbitrary output lists.
CH4Questions buyers ask
What's the difference between DP932A, DP932U and DP932E?

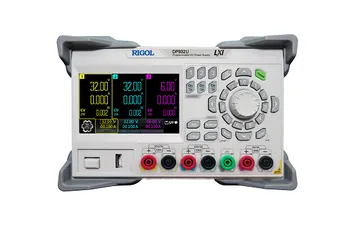

DP932A is the standard model. DP932U adds front-panel safety sockets for teaching labs. DP932E is a value version with 30 V/3 A main channels and 198 W total.
What comes in the box with the RIGOL DP932A?
RIGOL lists these standard accessories: Power Cord, Spare Fuse, Two pairs of 10 A testing cables, USB Cable, Calibration Certificate.
Can I add options to the DP932A later?
Yes. RIGOL lists 3 options and software packages for the DP900 Series (for example DP900-ARB, DP900-DIGITALIO, DP900-HIRES). Add them to your quote now or ask about an upgrade later.
Do you ship the DP932A outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DP932A
Options and accessories for the DP932A
Options & upgrades (3)
| Part | Description | List price | Quote |
|---|---|---|---|
| DP900-ARB | DP900 Series Arbitrary function option with the minimum dwell time of 100 ms (for DP932U only) | $119 | |
| DP900-DIGITALIO | DP900 Series Digital IO function option (for DP932U only) | $119 | |
| DP900-HIRES | DP900 Series High Resolution Option (for DP932U only) | $119 |
Accessories (3)
| Part | Description | List price | Quote |
|---|---|---|---|
| 10A-Testing-Cable | 10 A testing cable for DP Series | $25 | |
| RM-2-DP800 | Rack Mount Kit for DP800 series Power Supplies and DL3000 Loads | $122 | |
| RM-1-DP800 | Rack Mount Kit for DP800 series Power Supplies and DL3000 Loads | $137 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DP932A (R5-1) | DP932A extended warranty, 2 years, option with new product | $68 |
