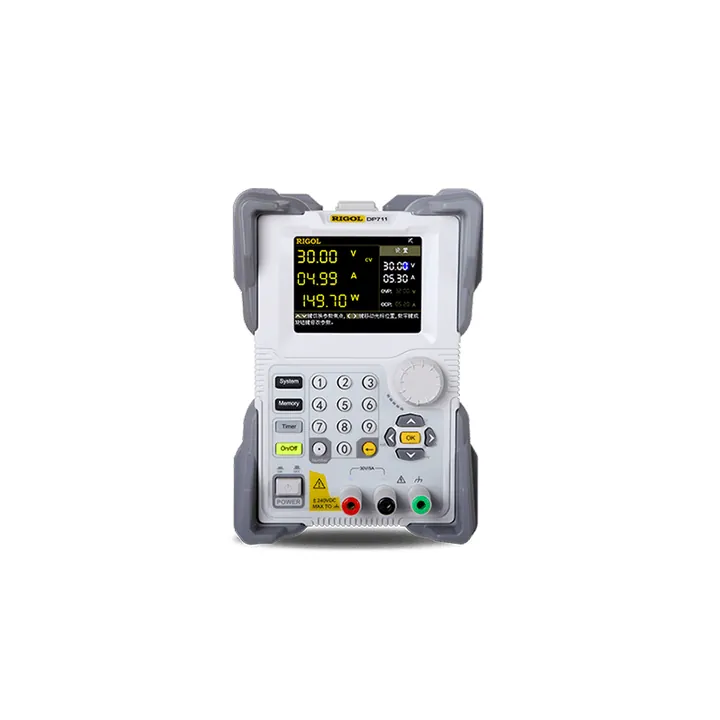

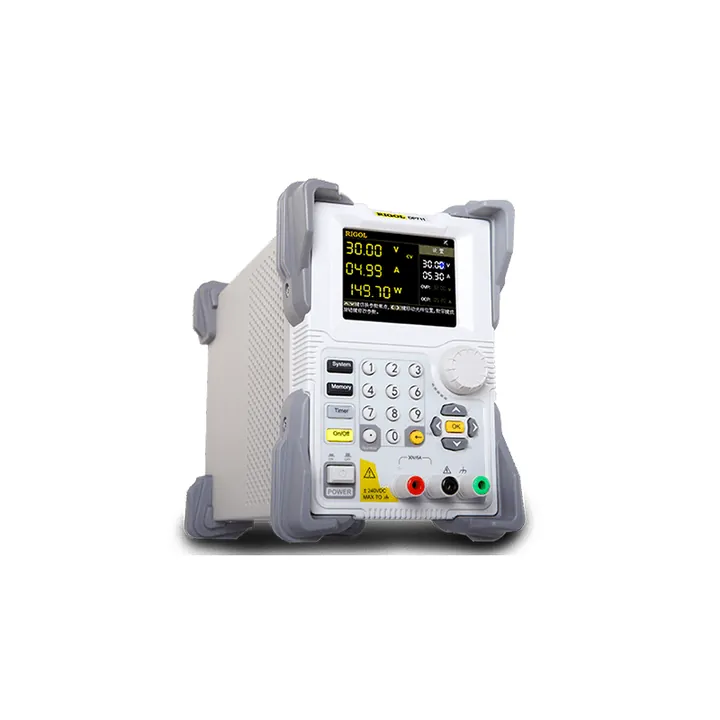

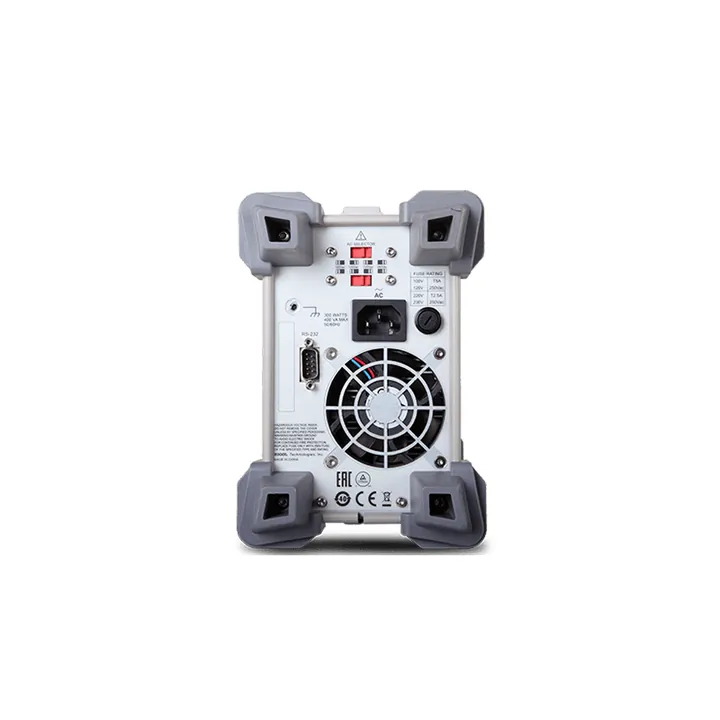

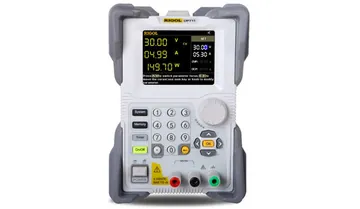

RIGOL DP711
150 W 1-Channel Programmable DC Power Supply · DP700 Series
Power Supply, 30V/5A, 150W, Single Channel Output
List price $349
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DP711 at a glance
- 1 outputs with 150 W total.
- Output up to 30 Volts / 5 Amps per output.
- 150 W single output: 30 V/5 A (DP711) or 50 V/3 A (DP712).
- Low ripple and noise, under 500 µVrms (linear design).
- Timed output of up to 2,048 steps and external trigger sync.
- OVP, OCP and over-temperature protection.
CH2RIGOL DP711 specifications
| Figure | DP711 | Source |
|---|---|---|
| Part number | DP711 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DP700 Series | RIGOL price list |
| Display | 3.5-inch TFT | DP700 datasheet |
| Interfaces | RS-232 | DP700 datasheet |
| Total power | 150 Watts | rigolna.com |
| Outputs | 1 channel(s) | rigolna.com |
| Max. voltage | 30 Volts | rigolna.com |
| Max. current | 5 Amps | rigolna.com |
| Output ranges | up to 30 Volts / 5 Amps per output (see datasheet for each channel) | rigolna.com |
| Readback resolution | 10 mV / 10 mA standard; 1 mV / 1 mA with the high-resolution option | DP700 datasheet |
| Ripple and noise | < 500 µVrms | DP700 datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 18 × 11 × 14 in | RIGOL price list |
| Shipping weight | 20 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · Specifications · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- Calibration Certificate
- Power Cord
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Powering a single prototype board with a clean, quiet rail.
- Scripted power cycling and timing tests.
- Education benches where a simple, safe supply is enough.
CH4Questions buyers ask
Can I get 1 mV / 1 mA resolution?
Yes, with RIGOL's high-resolution option. Standard resolution is 10 mV / 10 mA.
What comes in the box with the RIGOL DP711?
RIGOL lists these standard accessories: Calibration Certificate, Power Cord.
Can I add options to the DP711 later?
Yes. RIGOL lists 3 options and software packages for the DP700 Series (for example HIRES-DP700, Timer-DP700, Trigger-DP700). Add them to your quote now or ask about an upgrade later.
Do you ship the DP711 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DP711
Options and accessories for the DP711
Options & upgrades (3)
| Part | Description | List price | Quote |
|---|---|---|---|
| HIRES-DP700 | 1mV/1mA resolution option | $59 | |
| Timer-DP700 | Options for Timer | $59 | |
| Trigger-DP700 | External trigger in and Internal trigger out | $59 |
Accessories (5)
| Part | Description | List price | Quote |
|---|---|---|---|
| CB-DB9-DB9-F-F-150 | RS232 Cable, Female to Female, 150cm | $13 | |
| 10A-Testing-Cable | 10 A testing cable for DP Series | $25 | |
| RM-2-DP700 | Rack Mount Kit for two units | $83 | |
| RM-3-DP700 | Rack Mount Kit for three units | $83 | |
| RM-1-DP700 | Rack Mount Kit for one unit | $90 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DP711 (R5-1) | DP711 extended warranty, 2 years, option with new product | $30 |
