RIGOL DNA6264-R

Name: RIGOL DNA6264-R
Brand: RIGOL
SKU: DNA6264-R
Price: 59999.00 USD

26.5 GHz 4-Port Vector Network Analyzer · DNA6000-R Series

Compact Vector Network Analyzer, 5 kHz ~ 26.5 GHz, 4 ports

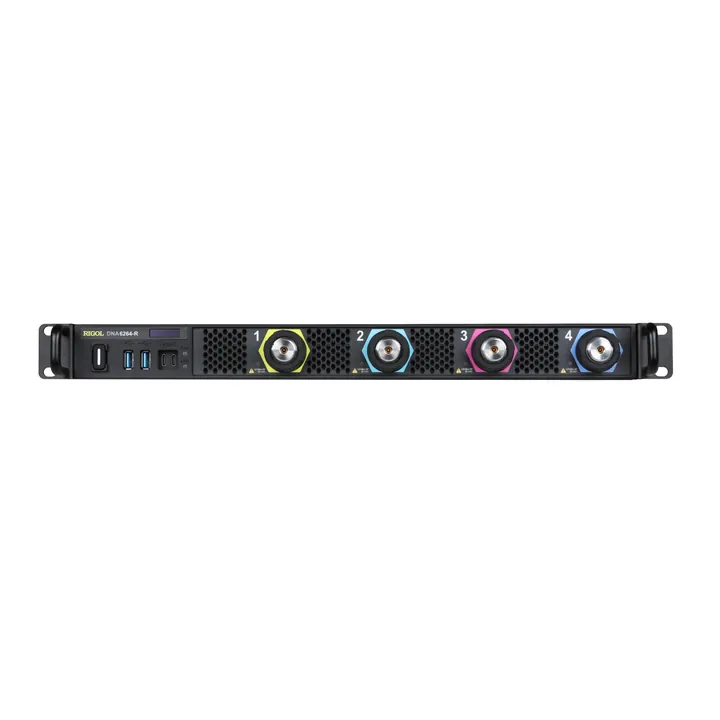

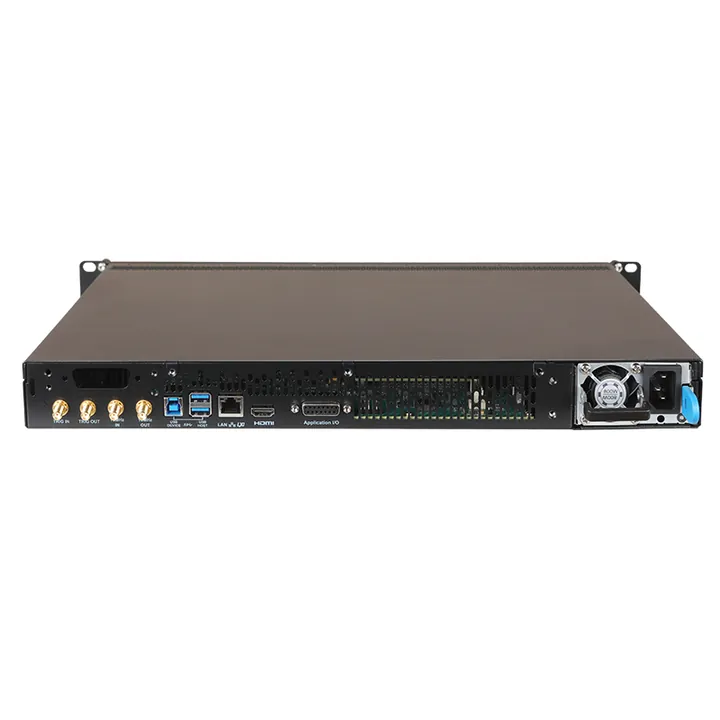

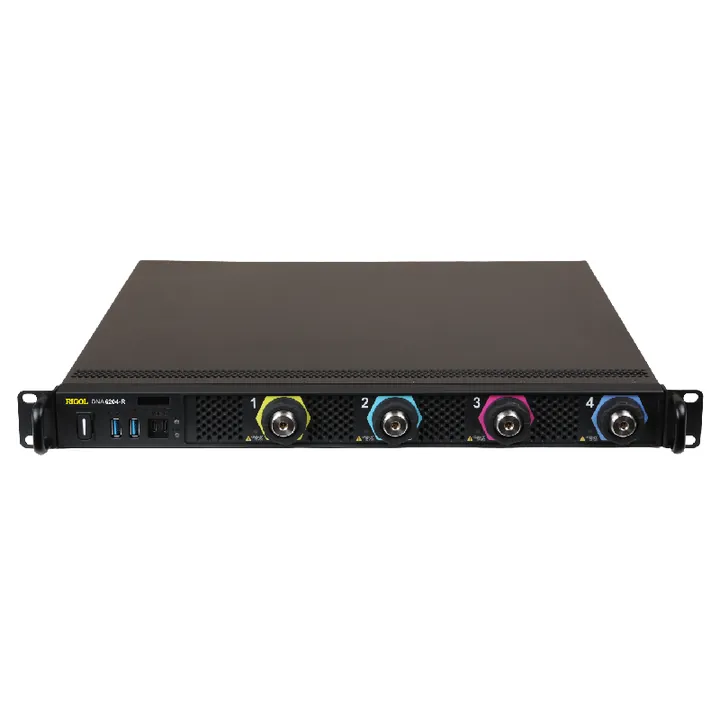

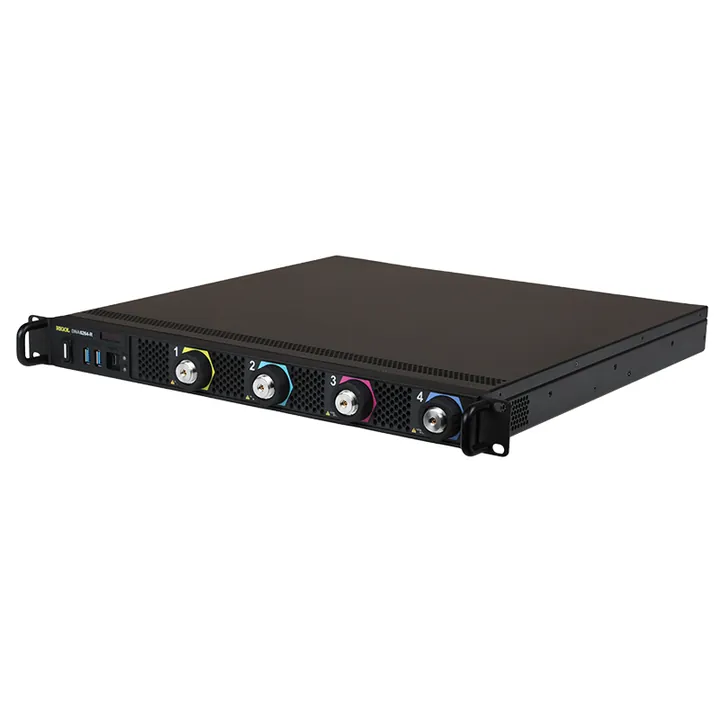

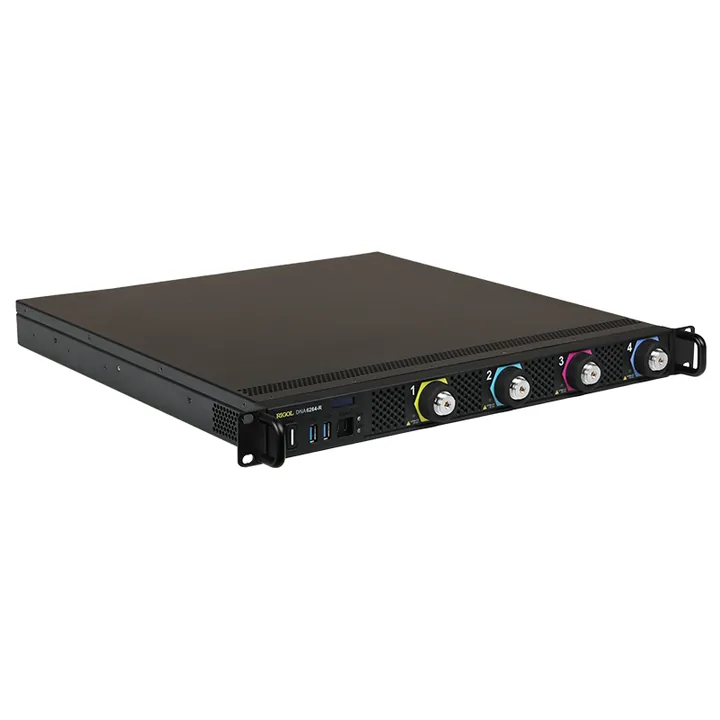

DNA6204-R shown. RIGOL's photo of a sister model; the DNA6264-R looks the same apart from its badge.

List price $59,999

Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.

Request a quote

Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry

CH1RIGOL DNA6264-R at a glance

Measures 5 kHz ~ 26.5 GHz.
41 compatible RIGOL options and accessories, listed below, so you can quote everything at once.
Compact 2- or 4-port VNA up to 26.5 GHz.
127 dB dynamic range (typ.), up to 10 dBm output.
Same measurement set as the DNA6000.

CH2RIGOL DNA6264-R specifications

Figure	DNA6264-R	Source
Part number	DNA6264-R	RIGOL
Brand	RIGOL	RIGOL
Series	DNA6000-R Series	RIGOL price list
Interfaces	USB 3.0 Host & Device, LAN, HDMI	DNA6000-R datasheet
Frequency range	5 kHz ~ 26.5 GHz	rigolna.com
Ports	4	rigolna.com
Max. output power	10 dBm	rigolna.com
High dynamic range	127 dB (typ.)	rigolna.com
Country of origin	Malaysia	RIGOL price list

RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: RIGOL's series page.

CH3In the box, and what it is for

What it's good for

Automated test systems where rack space matters.
Multi-port device characterization.
Production S-parameter checks.

CH4Questions buyers ask

Can I add options to the DNA6264-R later?

Yes. RIGOL lists 4 options and software packages for the DNA6000-R Series (for example DNA-DTF10, DNA-TAS10, DNA-TDA10, DNA-TDR10). Add them to your quote now or ask about an upgrade later.

Do you ship the DNA6264-R outside the US?

We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.

CH1Request a quote for the DNA6264-R

We reply by email, usually within one business day, with your price and lead time.

Quantity Name Company (optional) Email Phone (US)

Ship-to address (USA only) Street address Apt, suite, building (optional) City State or territory ZIP code CountryUnited States

Notes (optional)

Options and accessories for the DNA6264-R

Options & upgrades (4)

Part	Description	List price
DNA-DTF10	Distance to Fault	$999
DNA-TDA10	Time Domain Analysis	$1,599
DNA-TAS10 New	VNA Test Automation Software	$7,999
DNA-TDR10 New	Enhanced Time Domain Reflectometry	$8,999

Accessories (37)

Part	Description	List price
TW12-19	Torque Wrench, 12 in-lb, 19.1 mm-open end	$239
TW8-8	Torque Wrench, 8 in-lb, 8.1 mm-open end	$239
CB6200A New	RF Cable, DC ~ 26.5 GHz, 3.5 mm (m) - 3.5 mm (f), 100 cm	$409
CB6200B New	RF Cable, DC ~ 26.5 GHz, 2.4mm (m) - 3.5mm (m), 100 cm	$409
CB6201A New	RF Cable, DC ~ 18 GHz, SMA (m) - SMA (f), 100 cm	$409
CB6201B New	RF Cable, DC ~ 26.5 GHz, 2.4mm (m) - 3.5mm (f), 100 cm	$409
CB6202A New	RF Cable, DC ~ 18 GHz, N (m) - N (f), 100 cm	$409
CB6203A New	RF Cable, DC ~ 18 GHz, N (m) - SMA (f), 100 cm	$409
CB6204A New	RF Cable, DC ~ 18 GHz, N (m) - 3.5mm (f), 100 cm	$409
CB6100B New	RF Cable, DC ~ 50 GHz, 2.4 mm (m) - 2.4 mm (m), 100 cm	$459
CB6101B New	RF Cable, DC ~ 50 GHz, 2.4 mm (m)- 2.4 mm (f), 100 cm	$459
MCAL104-NF1	Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (f), 50 Ω	$499
MCAL104-NM1	Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (m), 50 Ω	$499
MCAL104-SF1	Mechanical Calibration Kit, DC ~ 4.5 GHz, SMA (f)	$599
MCAL104-SM1	Mechanical Calibration Kit, DC ~ 4.5 GHz, SMA (m)	$599
MCAL109-NF1	Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (f), 50 Ω	$1,599
MCAL109-NM1	Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m), 50 Ω	$1,599
MCAL109-SF1	Mechanical Calibration Kit, DC ~ 9 GHz, SMA (f)	$1,899
MCAL109-SM1	Mechanical Calibration Kit, DC ~ 9 GHz, SMA (m)	$1,899
MCAL109-NK1	Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m & f), 50 Ω	$2,999
MCAL214-35F5 New	4-in-1 OSLT Mechanical Calibration Kit, DC ~ 14 GHz, 3.5 mm (f)	$3,099
MCAL214-35M5 New	4-in-1 OSLT Mechanical Calibration Kit, DC ~ 14 GHz, 3.5 mm (m)	$3,099
MCAL109-SK1	Mechanical Calibration Kit, DC ~ 9 GHz, SMA (m & f)	$3,199
MCAL226-35F5	4-in-1 OSLT Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (f)	$3,799
ECAL109-NF2	Electronic Calibration Module, 100 kHz ~ 9 GHz, Type-N (f), 50 Ω, 2 ports	$3,999
ECAL114-NF2	Electronic Calibration Module, 100 kHz ~ 14 GHz, Type-N (f), 50 Ω, 2 ports	$4,499
MCAL126-35K1	Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (m & f)	$4,799
MCAL226-35M5 New	4-in-1 OSLT Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (f)	$5,399
ECAL126-35F2	Electronic Calibration Module, 100 kHz ~ 26.5 GHz, 3.5 mm (f), 2 ports	$5,999
ECAL109-NF4 New	Electronic Calibration Module, 100 kHz ~ 9 GHz, Type-N (f), 50 Ω, 4 ports	$8,699
MCAL114-NK1 New	Mechanical Calibration Kit, DC ~ 14 GHz, Type-N (m & f), 50 Ω	$9,399
ECAL114-NF4 New	Electronic Calibration Module, 100 kHz ~ 14 GHz, Type-N (f), 50 Ω, 4 ports	$9,599
ECAL209-NF4 New	Electronic Calibration Module, DC ~ 9 GHz, Type-N (f), 50 Ω, 4 ports	$9,599
ECAL214-NF4 New	Electronic Calibration Module, DC ~ 14 GHz, Type-N (f), 50 Ω, 4 ports	$10,699
MCAL118-APC7 New	Airline Fixture and Calibration Kit	$10,699
ECAL126-35F4 New	Electronic Calibration Module, 100 kHz ~ 26.5 GHz, 3.5 mm (f), 4 ports	$12,899
ECAL226-35F4 New	Electronic Calibration Module, DC ~ 26.5 GHz, 3.5 mm (f), 4 ports	$14,299
