RIGOL DNA5142

Name: RIGOL DNA5142
Brand: RIGOL
SKU: DNA5142
Price: 19899.00 USD

14 GHz 2-Port Vector Network Analyzer · DNA5000 Series

Vector Network Analyzer, 5 kHz ~ 14 GHz, 2 ports

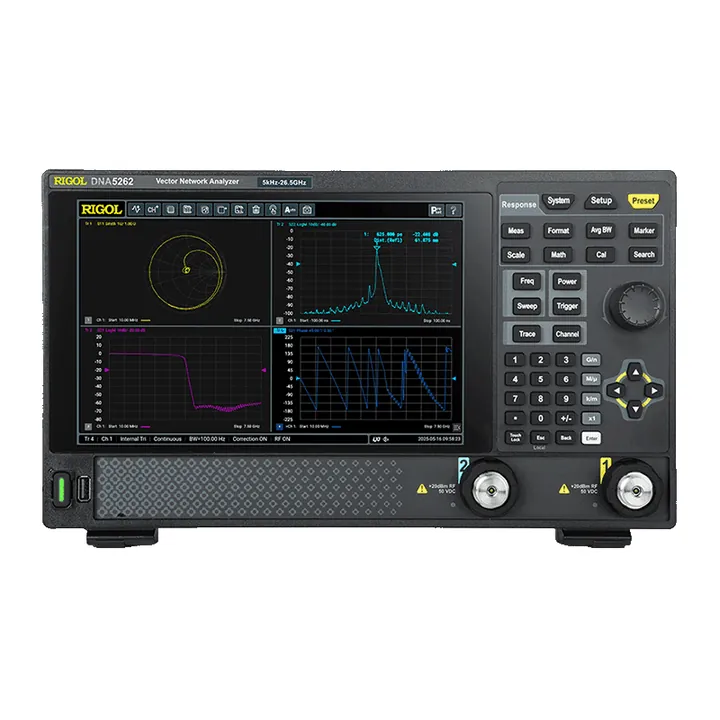

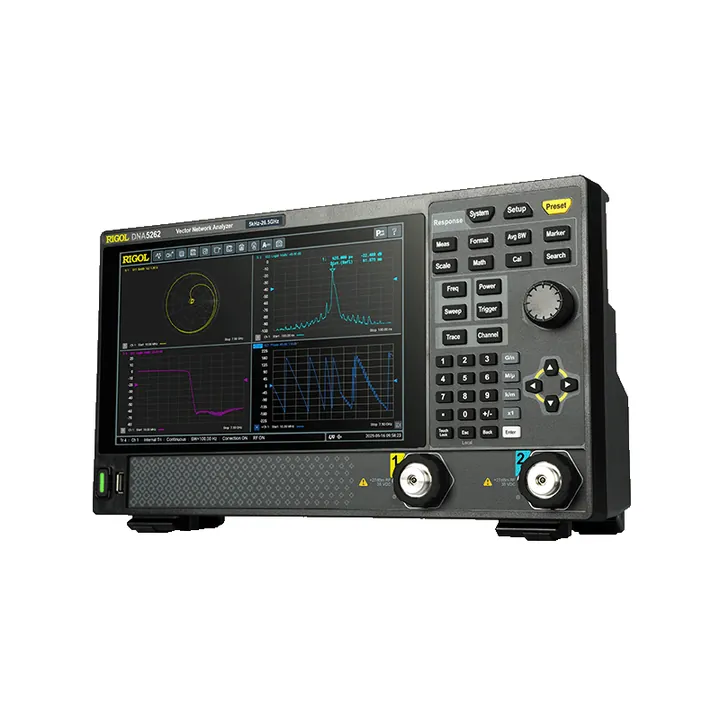

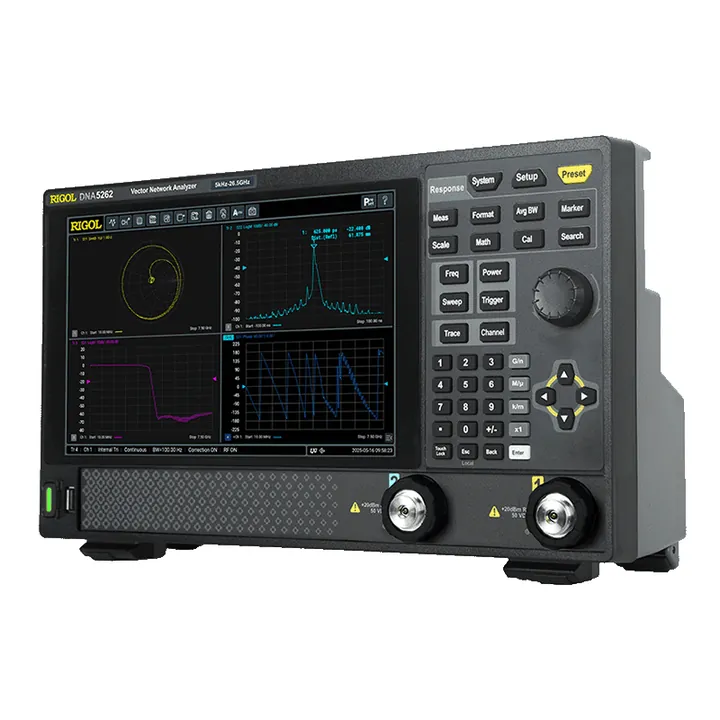

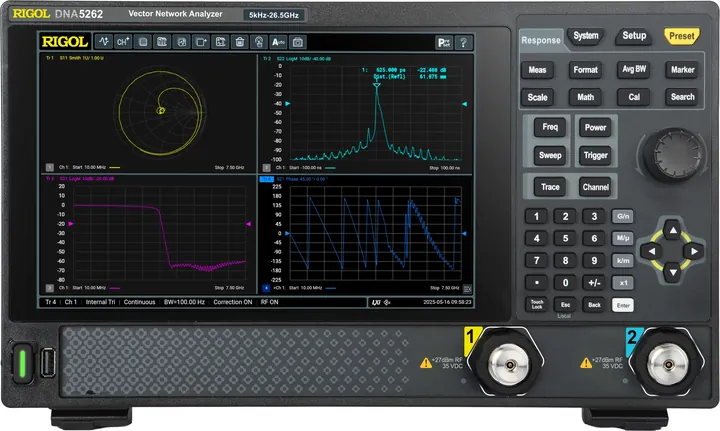

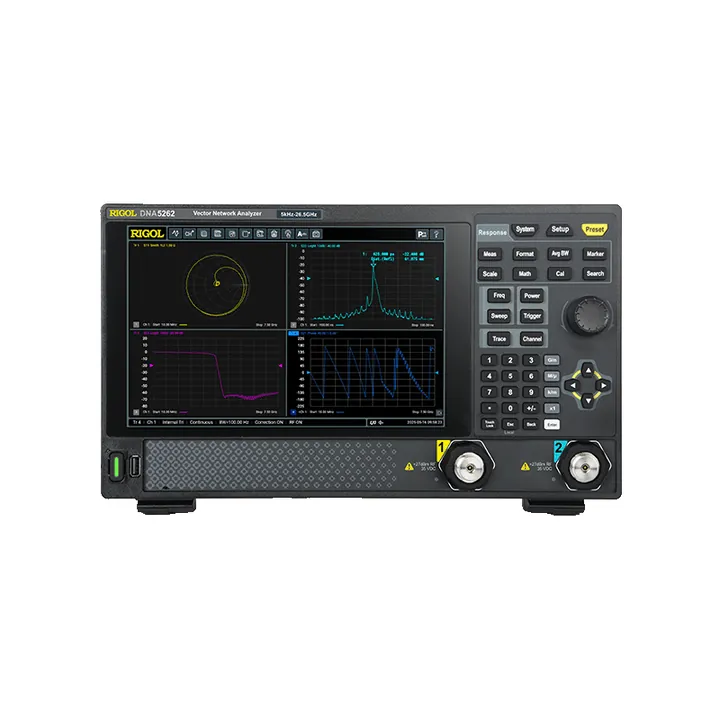

DNA5000 Series shown. RIGOL's photo of a sister model; the DNA5142 looks the same apart from its badge.

List price $19,899

Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.

Request a quote

Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry

CH1RIGOL DNA5142 at a glance

Measures 5 kHz ~ 14 GHz.
61 compatible RIGOL options and accessories, listed below, so you can quote everything at once.
2 ports from 5 kHz up to 26.5 GHz.
127 dB dynamic range (typ.); IF bandwidth 1 Hz to 10 MHz.
10.1-inch 1280×800 touch screen; LAN, USB, HDMI, Web Control.
5.3 kg, 358 × 215 × 121 mm.

CH2RIGOL DNA5142 specifications

Figure	DNA5142	Source
Part number	DNA5142	RIGOL
Brand	RIGOL	RIGOL
Series	DNA5000 Series	RIGOL price list
Display	10.1-inch 1280×800 touch screen	DNA5000 datasheet
Interfaces	LAN, USB Device & Host, HDMI; SCPI, Web Control	DNA5000 datasheet
Frequency range	5 kHz ~ 14 GHz	rigolna.com
Ports	2	rigolna.com
Max. output power	10 dBm	rigolna.com
High dynamic range	127 dB (typ.)	DNA5000 datasheet
Weight	5.3 kg	DNA5000 datasheet
Country of origin	Malaysia	RIGOL price list

RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: RIGOL's series page.

CH3In the box, and what it is for

What it's good for

RF and microwave component characterization.
PCB trace and connector S-parameter measurement.
Production test of filters and antennas over SCPI.

CH4Questions buyers ask

Can I add options to the DNA5142 later?

Yes. RIGOL lists 4 options and software packages for the DNA5000 Series (for example DNA-DTF10, DNA-TAS10, DNA-TDA10, DNA-TDR10). Add them to your quote now or ask about an upgrade later.

Do you ship the DNA5142 outside the US?

We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.

CH1Request a quote for the DNA5142

We reply by email, usually within one business day, with your price and lead time.

Quantity Name Company (optional) Email Phone (US)

Ship-to address (USA only) Street address Apt, suite, building (optional) City State or territory ZIP code CountryUnited States

Notes (optional)

Options and accessories for the DNA5142

Options & upgrades (4)

Part	Description	List price
DNA-DTF10	Distance to Fault	$999
DNA-TDA10	Time Domain Analysis	$1,599
DNA-TAS10 New	VNA Test Automation Software	$7,999
DNA-TDR10 New	Enhanced Time Domain Reflectometry	$8,999

Accessories (56)

Part	Description	List price
AD-NF-NF-L-18G	Adapter, N (f) - N (f), DC ~ 18GHz	$39
AD-SMAM-SMAM-L-18G	Adapter, SMA (m) - SMA (m), DC ~ 18GHz	$49
AD-SMAF-NM-L-18G	Adapter, SMA (f) - N (m), DC ~ 18GHz	$59
AD-SMAF-SMAF-L-18G	Adapter, SMA (f) - SMA (f), DC ~ 18GHz	$59
AD-SMAM-NM-L-18G	Adapter, SMA (m) - N (m), DC ~ 18GHz	$59
AD-NM-NM-L-18G	Adapter, N (m) - N(m), DC ~ 18GHz	$69
AD-3.5F-3.5F-L-26G	Adapter, 3.5mm (f) - 3.5mm (f), DC ~ 26.5GHz	$79
AD-3.5M-3.5M-L-26G	Adapter, 3.5mm (m) - 3.5mm (m), DC ~ 26.5GHz	$79
AD-NM-BNCF-L-4G	Adapter, N (m) - BNC (f), DC ~ 4GHz	$79
AD-SMAF-BNCM-L-4G	Adapter, SMA (f) - BNC (m), DC ~ 4GHz	$79
AD-3.5F-2.92M-L-26G	Adapter, 3.5mm (f) - 2.92 (m), DC ~ 26.5GHz	$109
AD-3.5M-2.92F-L-26G	Adapter, 3.5mm (m) - 2.92 (f), DC ~ 26.5GHz	$109
TW12-19	Torque Wrench, 12 in-lb, 19.1 mm-open end	$239
TW8-8	Torque Wrench, 8 in-lb, 8.1 mm-open end	$239
RM6051	Thunderbird Platform Rack Mount Kit	$259
CB-NM-3.5M-100-L-18G	RF Cable, DC ~ 18 GHz, N (m) - 3.5mm (m), 100 cm	$369
CB-NM-NM-100-L-18G	RF Cable, DC ~ 18 GHz, N (m) - N (m), 100 cm	$369
CB-NM-SMAM-100-L-18G	RF Cable, DC ~ 18 GHz, N (m) - SMA (m), 100 cm	$369
CB-SMAM-SMAM-100-L-18G	RF Cable, DC ~ 18 GHz, SMA (m) - SMA (m), 100 cm	$369
CB6200A New	RF Cable, DC ~ 26.5 GHz, 3.5 mm (m) - 3.5 mm (f), 100 cm	$409
CB6200B New	RF Cable, DC ~ 26.5 GHz, 2.4mm (m) - 3.5mm (m), 100 cm	$409
CB6201A New	RF Cable, DC ~ 18 GHz, SMA (m) - SMA (f), 100 cm	$409
CB6201B New	RF Cable, DC ~ 26.5 GHz, 2.4mm (m) - 3.5mm (f), 100 cm	$409
CB6202A New	RF Cable, DC ~ 18 GHz, N (m) - N (f), 100 cm	$409
CB6203A New	RF Cable, DC ~ 18 GHz, N (m) - SMA (f), 100 cm	$409
CB6204A New	RF Cable, DC ~ 18 GHz, N (m) - 3.5mm (f), 100 cm	$409
CB-3.5M-3.5M-100-L-26G	RF Cable, DC ~ 26.5 GHz, 3.5 mm (m) - 3.5 mm (m), 100 cm	$409
CB6100B New	RF Cable, DC ~ 50 GHz, 2.4 mm (m) - 2.4 mm (m), 100 cm	$459
CB6101B New	RF Cable, DC ~ 50 GHz, 2.4 mm (m)- 2.4 mm (f), 100 cm	$459
MCAL104-NF1	Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (f), 50 Ω	$499
MCAL104-NM1	Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (m), 50 Ω	$499
MCAL104-SF1	Mechanical Calibration Kit, DC ~ 4.5 GHz, SMA (f)	$599
MCAL104-SM1	Mechanical Calibration Kit, DC ~ 4.5 GHz, SMA (m)	$599
CB-NMD3.5F-3.5F-63-L-26G	VNA RF Cable, DC ~ 26.5 GHz, NMD 3.5mm (f) - 3.5mm (f), 63.5 cm	$1,099
MCAL109-NF1	Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (f), 50 Ω	$1,599
MCAL109-NM1	Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m), 50 Ω	$1,599
MCAL109-SF1	Mechanical Calibration Kit, DC ~ 9 GHz, SMA (f)	$1,899
MCAL109-SM1	Mechanical Calibration Kit, DC ~ 9 GHz, SMA (m)	$1,899
MCAL109-NK1	Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m & f), 50 Ω	$2,999
MCAL214-35F5 New	4-in-1 OSLT Mechanical Calibration Kit, DC ~ 14 GHz, 3.5 mm (f)	$3,099
MCAL214-35M5 New	4-in-1 OSLT Mechanical Calibration Kit, DC ~ 14 GHz, 3.5 mm (m)	$3,099
MCAL109-SK1	Mechanical Calibration Kit, DC ~ 9 GHz, SMA (m & f)	$3,199
MCAL226-35F5	4-in-1 OSLT Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (f)	$3,799
ECAL109-NF2	Electronic Calibration Module, 100 kHz ~ 9 GHz, Type-N (f), 50 Ω, 2 ports	$3,999
ECAL114-NF2	Electronic Calibration Module, 100 kHz ~ 14 GHz, Type-N (f), 50 Ω, 2 ports	$4,499
MCAL126-35K1	Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (m & f)	$4,799
MCAL226-35M5 New	4-in-1 OSLT Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (f)	$5,399
ECAL126-35F2	Electronic Calibration Module, 100 kHz ~ 26.5 GHz, 3.5 mm (f), 2 ports	$5,999
ECAL109-NF4 New	Electronic Calibration Module, 100 kHz ~ 9 GHz, Type-N (f), 50 Ω, 4 ports	$8,699
MCAL114-NK1 New	Mechanical Calibration Kit, DC ~ 14 GHz, Type-N (m & f), 50 Ω	$9,399
ECAL114-NF4 New	Electronic Calibration Module, 100 kHz ~ 14 GHz, Type-N (f), 50 Ω, 4 ports	$9,599
ECAL209-NF4 New	Electronic Calibration Module, DC ~ 9 GHz, Type-N (f), 50 Ω, 4 ports	$9,599
ECAL214-NF4 New	Electronic Calibration Module, DC ~ 14 GHz, Type-N (f), 50 Ω, 4 ports	$10,699
MCAL118-APC7 New	Airline Fixture and Calibration Kit	$10,699
ECAL126-35F4 New	Electronic Calibration Module, 100 kHz ~ 26.5 GHz, 3.5 mm (f), 4 ports	$12,899
ECAL226-35F4 New	Electronic Calibration Module, DC ~ 26.5 GHz, 3.5 mm (f), 4 ports	$14,299

Extended warranty (1)

Part	Description	List price	Quote
DNA5142 (R5-1)	DNA5142 extended warranty, 2 years, option with new product	$1,287

Other models

DNA5042 · DNA5082 · DNA5202 · DNA5262 · compare the DNA5000 Series
