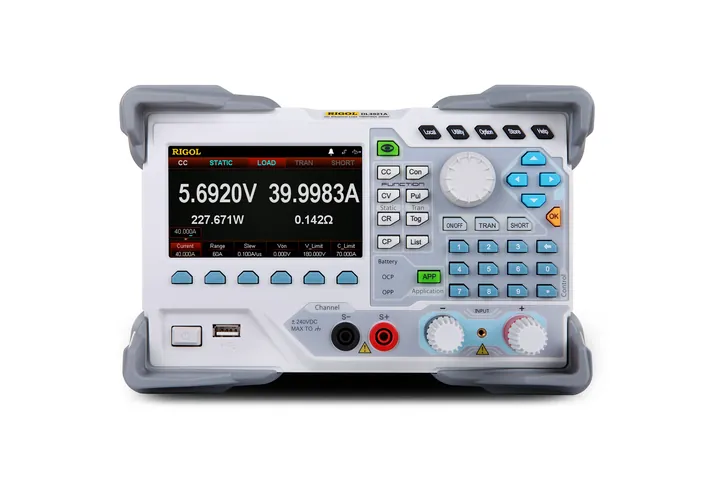

RIGOL DL3021A
200 W DC Electronic Load · DL3000 Series
200W Electronic Load with single input 150V/40A/30kHz with high resolution
List price $699
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DL3021A at a glance
- 1 outputs with 200 W total.
- Output up to 150 Volts / 40 Amps per output.
- 200, 350 or 450 W single input; up to 150 V (200 V on the DL3041).
- CC, CV, CR and CP modes plus dynamic modes up to 30 kHz (A models, DL3041).
- Battery, OCP, OPP and short-circuit test functions built in.
- RS-232, USB and LAN standard; 0.1 mV / 0.1 mA readback.
CH2RIGOL DL3021A specifications
| Figure | DL3021A | Source |
|---|---|---|
| Part number | DL3021A | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DL3000 Series | RIGOL price list |
| Display | 4.3-inch TFT | DL3000 datasheet |
| Interfaces | RS-232, USB, LAN; USB-GPIB optional | DL3000 datasheet |
| Total power | 200 Watts | rigolna.com |
| Outputs | 1 channel(s) | rigolna.com |
| Max. voltage | 150 Volts | rigolna.com |
| Max. current | 40 Amps | rigolna.com |
| Output ranges | up to 150 Volts / 40 Amps per output (see datasheet for each channel) | rigolna.com |
| Readback resolution | down to 0.1 mV / 0.1 mA | DL3000 datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 22 × 15 × 12 in | RIGOL price list |
| Shipping weight | 25 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · Specifications · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- DL-02
- Calibration Certificate
- Power Cord
- USB Cable
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Power-supply load regulation and transient response tests.
- Battery discharge capacity testing.
- Production checks of converters with list sequences.
CH4Questions buyers ask
What do the A models add?
Dynamic mode up to 30 kHz (vs 15 kHz) and higher measurement resolution, per RIGOL's descriptions.
What comes in the box with the RIGOL DL3021A?
RIGOL lists these standard accessories: DL-02, Calibration Certificate, Power Cord, USB Cable.
Can I add options to the DL3021A later?
Yes. RIGOL lists 5 options and software packages for the DL3000 Series (for example DIGITALIO-DL3, FREQ-DL3, HIRES-DL3, LAN-DL3). Add them to your quote now or ask about an upgrade later.
Do you ship the DL3021A outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DL3021A
Options and accessories for the DL3021A
Options & upgrades (5)
| Part | Description | List price | Quote |
|---|---|---|---|
| DIGITALIO-DL3 | Digital IO option for DL3021 and DL3032 | $99 | |
| FREQ-DL3 | High Frequency Option for DL3021 and DL3034 | $99 | |
| HIRES-DL3 | High reedback resolution option for DL3021 and DL3033 | $99 | |
| LAN-DL3 | LAN Interface option for DL3021 and DL3031 | $99 | |
| SLEWRATE-DL3 | High SlewRate option DL3021 and DL3035 | $99 |
Accessories (9)
| Part | Description | List price | Quote |
|---|---|---|---|
| CB-20A-780MM | 20A Load Input Cable (30 inch) | $19 | |
| CB-Sense | Sense Cable | $19 | |
| DL-02 | Terminal Shield | $19 | |
| CB-40A-780MM | 40A Load Input Cable (30 inch) | $29 | |
| CB-60A-780MM | 60A Load Input Cable (30 inch) | $39 | |
| CB-80A-780MM | 80A Red and black test cables | $69 | |
| RM-2-DP800 | Rack Mount Kit for DP800 series Power Supplies and DL3000 Loads | $122 | |
| RM-1-DP800 | Rack Mount Kit for DP800 series Power Supplies and DL3000 Loads | $137 | |
| USB-GPIB-L | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DL3021A (R5-1) | DL3021A extended warranty, 2 years, option with new product | $58 |
Other models
DL3021 · DL3031 · DL3031A · DL3041 · compare the DL3000 Series
