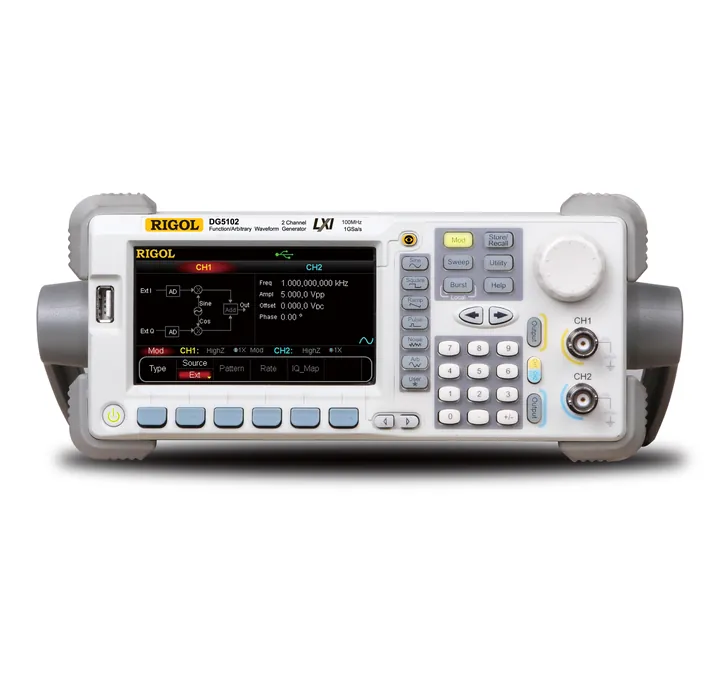

RIGOL DG5102
100 MHz 2-Channel Arbitrary Waveform Generator · DG5000 Series
100 MHz, 2 Channel, 14 bit Arbitrary Waveform and Function Generator with 128 Mpt arb memory
List price $5,599
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DG5102 at a glance
- Signals 100 MHz on 2 channels channels.
- Arbitrary waveform memory up to 128 M.
- 70 to 350 MHz in 1- or 2-channel models.
- 14-bit resolution with 128 Mpts arbitrary memory.
CH2RIGOL DG5102 specifications
| Figure | DG5102 | Source |
|---|---|---|
| Part number | DG5102 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DG5000 Series | RIGOL price list |
| Analog channels | 2 channels | rigolna.com |
| Vertical resolution | 14-bit | RIGOL product description |
| Frequency range | 100 MHz | rigolna.com |
| Square wave up to | 100 MHz | rigolna.com |
| Arbitrary waveform memory | 128 M | rigolna.com |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 23 × 15 × 10 in | RIGOL price list |
| Shipping weight | 15 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · Specifications · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- CB-BNC-BNC-MM-100
- USB Cable
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Long arbitrary sequences up to 128 Mpts.
- Existing test systems built around the DG5000.
- Wideband stimulus up to 350 MHz.
CH4Questions buyers ask
What comes in the box with the RIGOL DG5102?
RIGOL lists these standard accessories: CB-BNC-BNC-MM-100, USB Cable.
Can I add options to the DG5102 later?
Yes. RIGOL lists 2 options and software packages for the DG5000 Series (for example FH-DG5000, Ultra Station-adv). Add them to your quote now or ask about an upgrade later.
Do you ship the DG5102 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DG5102
Options and accessories for the DG5102
Options & upgrades (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| FH-DG5000 | Frequency Hopping option for DG5000 series Function Generators | $2,499 |
Software (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| Ultra Station-adv | Full advanced version of UltraStation wave generation software for DG4000 and DG5000 Series generators. This is a software upgrade license | $115 |
Accessories (5)
| Part | Description | List price | Quote |
|---|---|---|---|
| RA5040K | 40 dB attenuator accessory for oscilloscopes or generators | $47 | |
| RM-DG5000 | Rack Mounting Kit for a DG5000 Series Generator. | $249 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 | |
| PA1011 | 10W power amplifier for waveform generators | $451 | |
| DG-POD-A | 16 Channel Digital Signal Generator Module for DG5000 Series Arbitrary Function Generators | $924 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DG5102 (R5-1) | DG5102 extended warranty, 2 years, option with new product | $457 |
Other models
DG5071 · DG5072 · DG5101 · DG5251 · DG5252 · DG5351 · DG5352 · compare the DG5000 Series
