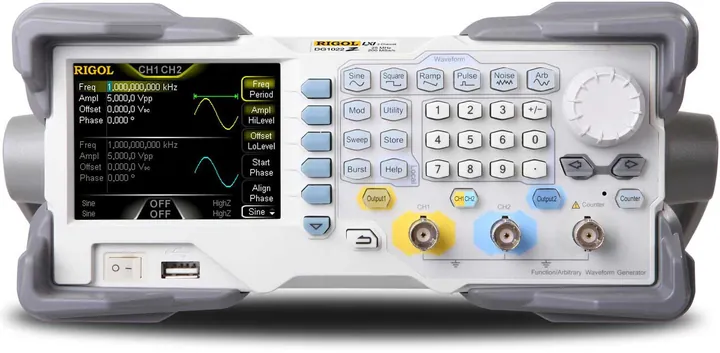

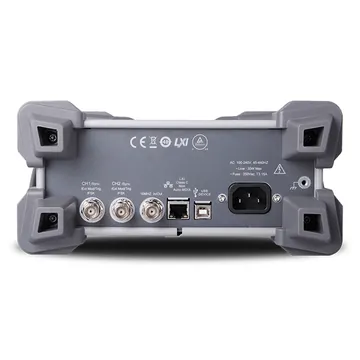

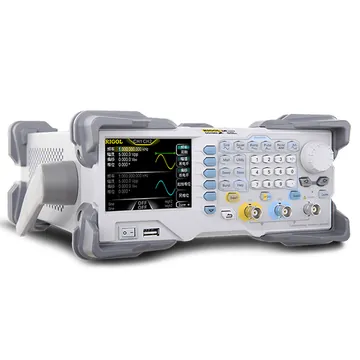

RIGOL DG1022Z
25 MHz 2-Channel Arbitrary Waveform Generator · DG1000Z Series
25 MHz, 2 ch, 200MS/s Waveform Generator with deep memory arbitrary waveform capability and SiFi signal fidelity technology
List price $389
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DG1022Z at a glance
- Signals 25 MHz on 2 channels channels.
- 200 MSa/s sample rate for clean edges and arbitrary waveforms.
- 2 channels at 25, 30 or 60 MHz (sine).
- 200 MSa/s with up to 8 Mpts arbitrary memory per channel.
- SiFi point-by-point arbitrary waveform generation.
- RIGOL lists a BNC cable in the box.
CH2RIGOL DG1022Z specifications
| Figure | DG1022Z | Source |
|---|---|---|
| Part number | DG1022Z | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DG1000Z Series | RIGOL price list |
| Analog channels | 2 channels | rigolna.com |
| Max. real-time sample rate | 200 MSa/s | RIGOL product description |
| Frequency range | 25 MHz | rigolna.com |
| Square wave up to | 25 MHz | rigolna.com |
| Arbitrary waveform memory | 2 M | rigolna.com |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 18 × 14 × 10 in | RIGOL price list |
| Shipping weight | 12 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · Specifications · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- CB-BNC-BNC-MM-100
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Teaching labs and student benches.
- Sensor and clock simulation.
- Stimulus for filter and amplifier testing.
CH4Questions buyers ask
What comes in the box with the RIGOL DG1022Z?
RIGOL lists these standard accessories: CB-BNC-BNC-MM-100.
Can I add options to the DG1022Z later?
Yes. RIGOL lists 2 options and software packages for the DG1000Z Series (for example Arb16M-DG1000Z, Ultra Station-adv). Add them to your quote now or ask about an upgrade later.
Do you ship the DG1022Z outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DG1022Z
Options and accessories for the DG1022Z
Options & upgrades (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| Arb16M-DG1000Z | 16M Arb memory Depth Option | $180 |
Software (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| Ultra Station-adv | Full advanced version of UltraStation wave generation software for DG4000 and DG5000 Series generators. This is a software upgrade license | $115 |
Accessories (5)
| Part | Description | List price | Quote |
|---|---|---|---|
| RA5040K | 40 dB attenuator accessory for oscilloscopes or generators | $47 | |
| RM-1-DG1000Z | Rack Mounting Kit for one DG1000Z | $100 | |
| RM-2-DG1000Z | Rack Mounting Kit for two DG1000Z | $134 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 | |
| PA1011 | 10W power amplifier for waveform generators | $451 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DG1022Z (R5-1) | DG1022Z extended warranty, 2 years, option with new product | $33 |
